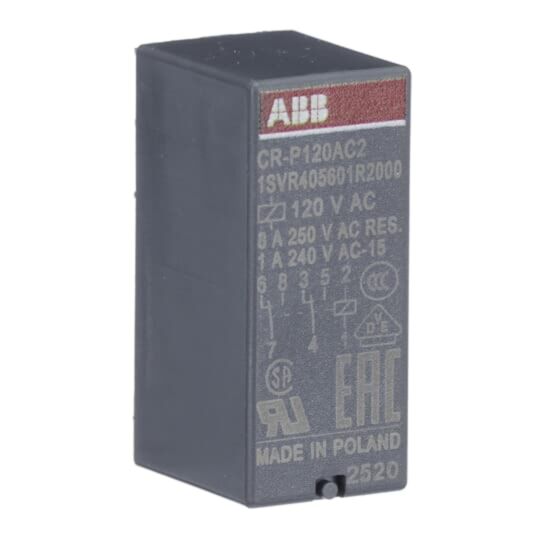

ABB CR-P120AC2 Pluggable Relay 2C/O 120VAC
MPN: 1SVR405601R2000
Alt. SKU: CR-P120AC2
Special Price
£4.74
£3.95
Regular Price
£7.30
Why Choose the CR-P120AC2 [1SVR405601R2000]
The CR-P120AC2 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 120 V AC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 8 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Technical Specification
- Function: Pluggable PCB interface relay, 2 C/O (SPDT) contacts.
- Control Supply Voltage: 120 V AC.
- Contact Rating: 250 V / 8 A.
- Rated Operational Voltage: Up to 400 V AC.
- Insulation Voltage (Ui): 400 V.
- Degree of Protection: IP67 (dust-tight and water immersion protection).
- Terminal Type: Soldering pins.
- Standards Compliance: IEC/EN 61810-1, UL94 V-0 flammability.
- Mounting: Direct PCB mounting or via ABB sockets.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the control supply voltage for the CR-P120AC2 relay?
The control supply voltage for the CR-P120AC2 relay is 120 V AC.
What is the contact rating of the CR-P120AC2 relay?
The contact rating is 250 V / 8 A.
Can the CR-P120AC2 relay be mounted directly on a PCB?
Yes, the CR-P120AC2 relay is suitable for direct PCB mounting.
What is the degree of protection for the CR-P120AC2 relay?
The relay has an IP67 rating, providing complete protection against dust and water immersion up to one metre.
Is the CR-P120AC2 relay compatible with ABB sockets?
Yes, the relay can be used in conjunction with ABB's sockets.
What are the available accessories for the CR-P120AC2 relay?
Standard sockets, logical sockets, pluggable function modules, holders, and markers are available as accessories.
What standards does the CR-P120AC2 relay comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SVR405601R2000 |
|---|---|
| Manufacturer | ABB |
| Packed Quantity | 1 |
| Amperage | 8A |
| Number of Poles | 2 Pole |
| Product Lead Time | Please contact us for a delivery time |
| Barcode | 4013614498244 |
| Alternative Product SKU | CR-P120AC2 |
| Coil Voltage | 120VAC |
