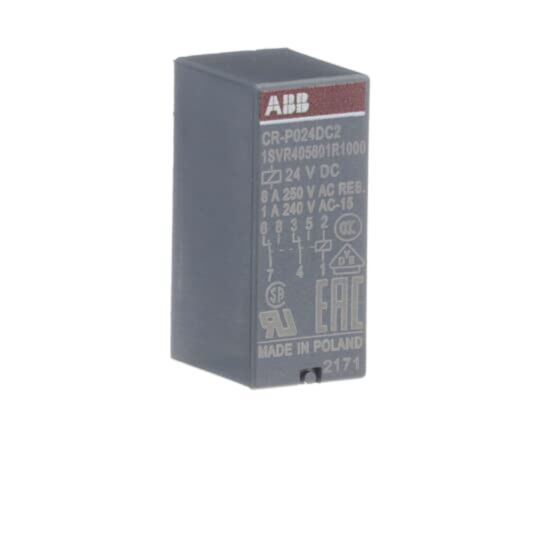

ABB CR-P024DC2 Pluggable Relay 2C/O 24VDC
MPN: 1SVR405601R1000
Alt. SKU: CR-P024DC2
Special Price
£3.41
£2.84
Regular Price
£5.24
Why Choose the CR-P024DC2 [1SVR405601R1000]
The CR-P024DC2 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 24 V DC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 8 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Technical Specification
- Function: Pluggable PCB interface relay with 2 C/O (SPDT) contacts.
- Rated Control Supply Voltage: 24 V DC.
- Contact Rating: 250 V / 8 A.
- Rated Operational Voltage: 400 V AC.
- Rated Operational Current: AC-12: 8 A at 230 V; DC-12: 8 A at 24 V.
- Terminal Type: Soldering pins.
- Degree of Protection: IP67 (dust tight and immersion protected).
- Insulation Voltage: 400 V.
- Standards Compliance: IEC/EN 61810-1, UL94 V-0 flammability rating.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated control supply voltage for the CR-P024DC2 relay?
The rated control supply voltage for the CR-P024DC2 relay is 24 V DC.
What is the contact rating of the relay?
The contact rating of the relay is 250 V / 8 A.
Can the CR-P024DC2 relay be mounted directly on a PCB?
Yes, the CR-P024DC2 relay is suitable for direct mounting on a printed circuit board.
What is the degree of protection for the CR-P024DC2 relay?
The relay has an IP67 rating, providing complete protection against dust and immersion in water up to one metre.
What types of sockets are compatible with the CR-P024DC2 relay?
The relay can be used in conjunction with standard sockets and logical sockets, which are available as accessories.
What is the insulation voltage for the CR-P024DC2 relay?
The insulation voltage for the relay is 400 V.
What standards does the CR-P024DC2 relay comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SVR405601R1000 |
|---|---|
| Manufacturer | ABB |
| Packed Quantity | 1 |
| Amperage | 8A |
| Number of Poles | 2 Pole |
| Product Lead Time | Please contact us for a delivery time |
| Barcode | 4013614498237 |
| Alternative Product SKU | CR-P024DC2 |
| Coil Voltage | 24VDC |
