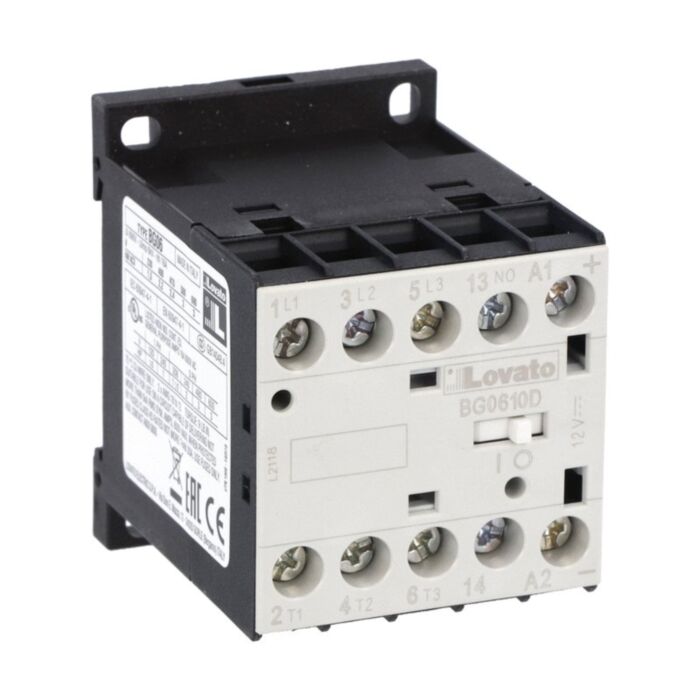

11BG0610D110 - MINICONTACTOR BG06.10D 110VDC
MPN: 11BG0610D110
Alt. SKU: BG0610D110
Special Price
£41.09
£34.24
Regular Price
£68.47
Why Choose the 11BG0610D110?
Engineered for reliable motor and load switching, the Lovato 3‑pole contactor 11BG0610D110 combines a 110 V DC coil with a built‑in 1NO auxiliary contact for straightforward control integration. Rated AC‑3 6 A/2.2 kW at 400 V and AC‑1 16 A, this compact BG06 series device delivers dependable performance in control panels and machinery, while meeting IEC/EN and UL/CSA standards for assured compatibility and safety.
Designed for demanding environments, this contactor operates from −50 to +70 °C and achieves 20,000,000 mechanical cycles. A 690 V rated insulation (Ui) and 6 kV impulse withstand (Uimp) support robust isolation, while screw or 35 mm DIN‑rail mounting speeds installation. With 0.8–1 Nm terminal torque and 3000 m altitude capability, it suits compact control cabinets and distributed automation assemblies.
Key Benefits
- True 3‑pole switching for compact motor and load control.
- 110 V DC coil for stable operation in DC control circuits.
- AC‑3 6 A/2.2 kW at 400 V for small motor applications.
- Built‑in 1NO auxiliary contact simplifies control wiring.
- Wide −50 to +70 °C operating range suits harsh environments.
- Screw or 35 mm DIN‑rail mounting enables fast installation.
- Long mechanical life rated to 20,000,000 operations.
Technical Specification
- Product type designation: BG06
- Number of poles: 3
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 16 A
- Terminal tightening torque: 0.8 to 1 Nm
- Weight: 214 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to +70 °C
- Storage temperature: -60 to +80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BG06 three-pole contactor (SKU 11BG0610D110)
- Integrated 1NO auxiliary contact
- Access to manufacturer datasheet (online)
Applications
- AC-3 motor switching up to 2.2 kW at 400 V
- General-purpose load control in industrial control panels
- Pumps, fans and small conveyors with 110 V DC control
- HVAC and building services automation circuits
- OEM machinery and distributed I/O cabinets
Frequently Asked Questions
What coil voltage and type does this contactor use?
It uses a DC coil rated at 110 V.
What is its IEC AC-3 rating at 400 V?
It is rated 6 A / 2.2 kW at 400 V under AC‑3 duty.
Are auxiliary contacts included?
Yes, it has one built‑in normally open (1NO) auxiliary contact.
How can it be mounted in a panel?
It supports screw mounting or 35 mm DIN‑rail installation for flexibility.
What environmental and endurance ratings does it have?
Operating range is −50 to +70 °C with 20,000,000 mechanical cycles. It also has Ui 690 V and Uimp 6 kV.
Safety note: Install and commission by qualified personnel only. Isolate power before wiring, tighten terminals to 0.8–1 Nm, and operate within the specified ratings and standards.
| Manufacturer Part Number | 11BG0610D110 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975082683 |
| Alternative Product SKU | BG0610D110 |
| Coil Voltage | 110VDC |
