LPCB6844R458A - RED MUSHROOM-HEAD ACTUATOR 40MM

Why Choose the LPCB6844R458A?

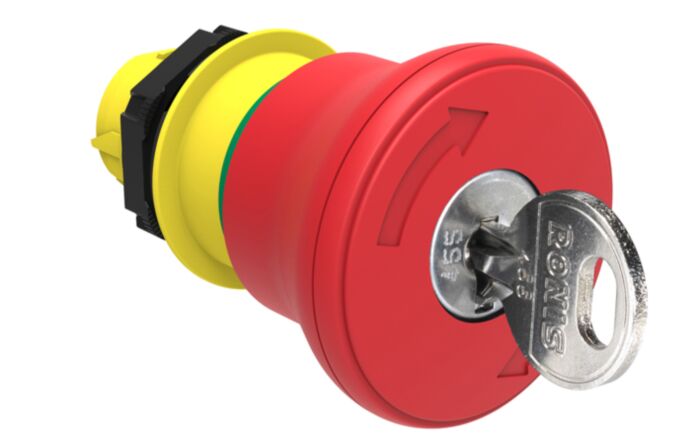

Engineered for reliable emergency stopping, the Lovato LPCB6844R458A is a red mushroom head pushbutton actuator from the Platinum chromed plastic Ø22mm series. As part of pushbuttons and selector switches, it provides a Ø40 mm head for high visibility and a latching action with turn-key release and different key code, ideal for decisive operator intervention.

Designed for ISO 13850 emergency functions, this non-illuminated, symbol-free actuator supports safety circuits where an unambiguous stop is required. It conforms to IEC/EN/BS 60947-1 and 60947-5-1, plus UL508 and CSA C22.2 n° 14. Operating from -25 to +70 °C with storage to -40 to +85 °C, it weighs 83 g for a robust yet lightweight fit.

Key Benefits

• ISO 13850 emergency stopping compliance for recognised safety performance.
• Large Ø40 mm red mushroom head improves visibility and accessibility.
• Latching design with turn-key release ensures controlled reset.
• Ø22mm Platinum series for secure panel mounting in control stations.
• Non-illuminated and symbol-free for straightforward safety circuit integration.
• Chromed plastic construction aligned with Lovato Platinum series aesthetics.
• Wide operating temperature range: -25 to +70 °C.
• Conforms to IEC/EN/BS 60947-1/-5-1, plus UL508 and CSA.

Technical Specification

• Product type designation: LPCB684
• Weight: 83 g
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +85 °C

What’s Included

• Red mushroom head pushbutton actuator, Ø22mm Platinum series
• Integrated latching mechanism with turn-key release (different key code)
• Digital product datasheet from manufacturer

Applications

• Emergency stop operators on industrial machinery and equipment
• Control panels and stations requiring ISO 13850 emergency stopping
• Conveyors, material handling, and process automation safety interfaces
• OEM machine builds and maintenance replacements for Ø22mm panels

Safety note: Install and commission by competent personnel. Use within a safety function designed to ISO 13850 and applicable standards, and isolate power before maintenance.
