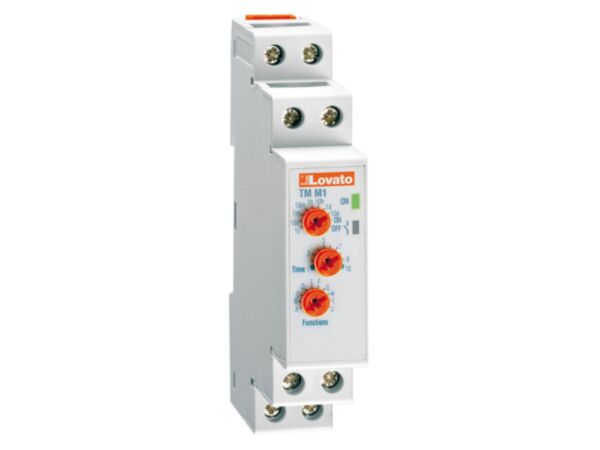

Lovato TMM1- Multifunction Timer 12...240VAC/DC SPDT 8 Amp 0.1-1s to 10 Days On Only/Off Only
MPN: TMM1
Special Price
£66.20
£55.17
Regular Price
£110.35
Why Choose the TMM1?
Lovato TMM1 is a multifunction time relay designed for modular DIN rail mounting in control panels and OEM assemblies. With simple, reliable potentiometer programming, the TMM1 streamlines setup while delivering dependable timing performance across varied applications. Rated Ith (IEC) 8 A and Uimp 4 kV, this compact unit balances robustness and ease of use, making it a versatile choice for maintenance teams and panel builders alike.
Built for demanding environments, it operates from -20 to +60 °C with a mechanical life of 30000000 cycles, and weighs just 86 g for easy panel integration. Compliance with IEC/EN 61812-1, UL508 and CSA C22.2 n°14 underpins reliable performance and safety. A sustainability certification helps support responsible specification without compromising the functionality expected of a high‑quality time relay.
Key Benefits
- Multifunction timing for flexible control across diverse applications.
- Modular DIN rail mounting for quick, tidy panel installation.
- Simple potentiometer programming speeds setup and adjustments.
- Robust design with Ith (IEC) 8 A and 4 kV Uimp.
- High mechanical life of 30000000 cycles for long service.
- Wide operating range from -20 to +60 °C.
- Compliant with IEC/EN 61812-1, UL508 and CSA C22.2 n°14.
- Compact 86 g unit simplifies panel layout.
Technical Specification
- Product type designation: TMM1
- Ith (IEC): 8 A
- Rated impulse withstand voltage Uimp: 4 kV
- Mechanical life: 30000000 cycles
- Operating temperature: -20 to +60 °C
- Storage temperature: -30 to +80 °C
- Weight: 86 g
What’s Included
- Lovato TMM1 multifunction time relay
- Mounting and operation instructions
- Manufacturer warranty information
- Packaging for safe transit
Applications
- Control panels requiring adjustable timing functions
- OEM machinery and equipment with DIN rail assemblies
- Machine and process control circuits
- Factory automation sequences and interlocks
- Maintenance replacements for multifunction timing relays
Frequently Asked Questions
What programming method does the Lovato TMM1 use?
It uses potentiometers for straightforward timing adjustments.
Is the TMM1 suitable for DIN rail mounting?
Yes, it is designed for modular DIN rail mounting.
What are the key electrical ratings?
Ith (IEC) is 8 A and the rated impulse withstand voltage Uimp is 4 kV.
What is its operating temperature range?
It operates from -20 to +60 °C and can be stored from -30 to +80 °C.
Which standards does it comply with?
It conforms to IEC/EN 61812-1, UL508 and CSA C22.2 n°14.
Safety note: Install and commission only by qualified personnel. Isolate power before work, and follow the manufacturer’s instructions and applicable standards.
| Manufacturer Part Number | TMM1 |
|---|---|
| Timer Type | Multifunction |
| Barcode | 8013975147108 |
| Country of Manufacture | Italy |
| Manufacturer | Lovato |
