lovato sm1x18s sm1rm support rod > 145mm

Why Choose the SM1X18S?

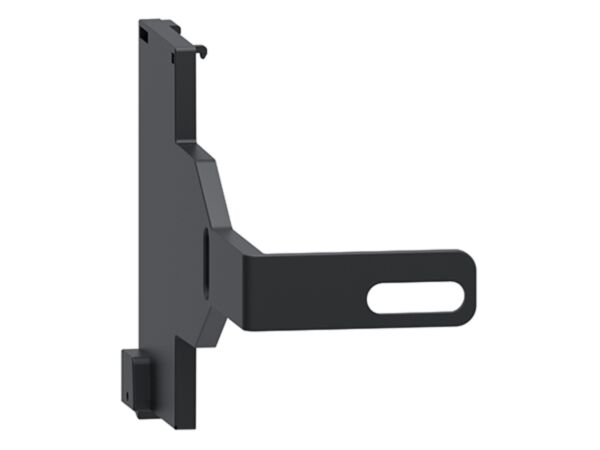

Lovato’s SM1X18S is an SM1X-range accessory designed as a support for door‑coupling rods longer than 145 mm, used with SM1R… systems. Ideal for deeper enclosures and extended operator mechanisms, it helps maintain alignment and stability in door coupling assemblies. With a lightweight 30 g build and wide operating temperature, this practical component complements IP65 (Type 4X) padlockable door coupling handle installations.

Engineered by Lovato, this Accessories item carries the SM1X designation and conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, UL508 and CSA C22.2 n° 14, supporting dependable performance in industrial control panels. Operating from -20 to +60 °C and storing from -50 to +80 °C, it suits varied environments. A sustainability-certified choice, it offers straightforward integration when you need reliable rod support within SM1R… door-coupling handle assemblies.

Key Benefits

• Supports door-coupling rods exceeding 145 mm for stable operation.
• Compatible with SM1R… door operator assemblies in the SM1X range.
• Suits IP65 (Type 4X) padlockable door coupling handle systems.
• Lightweight 30 g design eases handling and placement.
• Reliable across -20 to +60 °C operating temperatures.
• Compliant with IEC/EN 60947, UL508 and CSA standards.
• A sustainability-certified accessory from Lovato for responsible projects.

Technical Specification

• Product type designation: SM1X
• Weight: 30 g
• Operating temperature: -20 to +60 °C
• Storage temperature: -50 to +80 °C

What’s Included

• SM1X18S rod support accessory unit
• Basic installation leaflet
• Protective packaging

Applications

• Supporting extended rods in SM1R… door coupling handle systems
• Motor protection breaker door operator mechanisms
• Deep enclosure and large cabinet door actuation setups
• Industrial control panels requiring stable rod guidance

Safety note: Install and commission only by qualified personnel. De-energise equipment before work and follow Lovato documentation, applicable standards and stated temperature limits.
