lovato sm1x16230 sm1 shunt trip releases 230vac 50/560hz

Why Choose the SM1X16230?

Designed for dependable remote tripping, the Lovato SM1X16230 shunt trip release accessory delivers 230VAC 50/60Hz control for SM1P and SM1R devices. Part of the SM1X range, it combines a high Ui of 690 V with 4 kV impulse withstand in a compact 140 g form. Conformity with IEC/EN 60947-1/60947-5-1, UL508 and CSA C22.2 n° 14 supports compliance in UK and international panels.

Built for endurance, this shunt trip release achieves 100000 mechanical cycles and operates reliably from -20 to +60 °C, with storage down to -50 °C and up to +80 °C. A maximum altitude rating of 3000 m and specified terminal tightening torque of 1 to 1 Nm help ensure dependable installation and service across varied sites and cabinet conditions.

Key Benefits

• 230VAC 50/60Hz operation enables reliable remote tripping control.
• Compatible with SM1P and SM1R devices for straightforward integration.
• High insulation rating Ui 690 V enhances electrical safety margins.
• Robust 4 kV impulse withstand improves resilience to transients.
• Wide -20 to +60 °C operating range suits demanding environments.
• Long 100000-cycle mechanical life reduces maintenance interventions.
• Compact 140 g accessory simplifies panel layout and handling.
• IEC/EN 60947-1 and 60947-5-1, UL508, CSA compliance.

Technical Specification

• Product type designation: SM1X
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 4 kV
• Terminal tightening torque: 1 to 1 Nm
• Weight: 140 g
• Mechanical life: 100000 cycles
• Operating temperature: -20 to +60 °C
• Storage temperature: -50 to +80 °C
• Max altitude: 3000 m

What’s Included

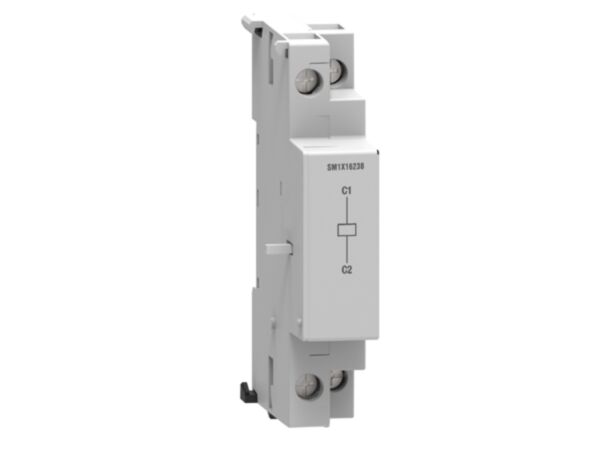

• Lovato SM1X16230 shunt trip release accessory
• Installation instructions

Applications

• Remote tripping of SM1P and SM1R devices at 230VAC
• Emergency stop or control circuit integration for remote release
• Switchboards and panels requiring shunt trip functionality
• Industrial and commercial installations within specified environmental limits

Safety note: Installation and wiring should be performed by qualified personnel with power isolated. Observe the specified voltage, torque, and standards to ensure safe operation.
