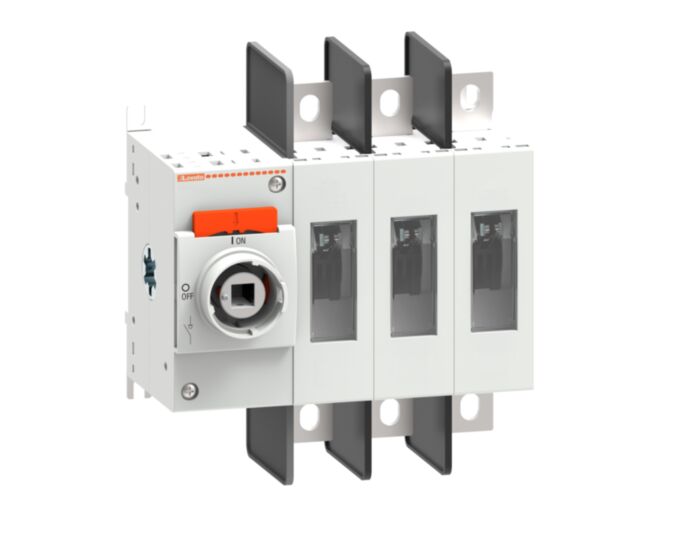

Lovato GL0200C1UL UL98 three-pole switch disconnector 200A

Why Choose the GL0200C1UL?

Lovato’s GL0200C1UL switch disconnector delivers reliable three-pole isolation for demanding AC installations. Rated Ith 200 A and UL98 compliant, this compact unit supports screw mounting on a plate or quick installation on a 35 mm DIN rail. With Ui 1000 V and 12 kV impulse withstand, the GL0200C1UL is engineered for safe, decisive switching in control panels and distribution boards.

Designed for AC21A to AC23A duties at 400, 500 and 690 V, this 3-pole isolator handles 200 A operational current with low 4 W per-pole dissipation. It offers up to 200 kW AC23A at 690 V (110 kW at 400 V), conditional short-circuit current 100 kA with J/200 fuses, and durable mechanics rated 20,000 cycles. Suitable conductors are 70–185 mm²; tighten to 15–22 Nm.

Key Benefits

• UL98 and IEC/EN 60947-3 conformity for assured isolation performance
• 3-pole AC switching, 200 A Ith across AC21A–AC23A duties
• High insulation rating: Ui 1000 V; impulse withstand Uimp 12 kV
• Conditional short-circuit current 100 kA with J/200 fuses
• Flexible mounting on 35 mm DIN rail or screw-fixed panel
• Long service life: mechanical endurance 20,000 operating cycles
• Accepts 70–185 mm² conductors; torque terminals to 15–22 Nm
• Low thermal losses with max 4 W per pole dissipation

Technical Specification

• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 200 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 12 kV
• Operating current Ie AC21A 400 V: 200 A
• Operating current Ie AC21A 500 V: 200 A
• Operating current Ie AC21A 690 V: 200 A
• Operating current Ie AC22A 400 V: 200 A
• Operating current Ie AC22A 500 V: 200 A
• Operating current Ie AC22A 690 V: 200 A
• Operating current Ie AC23A 400 V: 200 A
• Operating current Ie AC23A 500 V: 200 A
• Operating current Ie AC23A 690 V: 200 A
• Power dissipation per pole (max): 4 W
• Rated operational power AC23A 400 V: 110 kW
• Rated operational power AC23A 690 V: 200 kW
• Conditional short-circuit current (rms): 100 kA
• Short-circuit protection fuse: J/200
• Making capacity AC23A 400 V: 2000 A
• Breaking capacity AC23A 400 V: 1600 A
• Mechanical life: 20000 cycles
• Terminal tightening torque: 15 to 22 Nm
• Conductor section (IEC): 70 to 185 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m

What’s Included

• Lovato GL0200C1UL 3-pole switch disconnector
• DIN rail and panel mounting readiness (hardware as required)
• Manufacturer technical datasheet (downloadable)
• Basic installation and safety guidance

Applications

• Main isolation for industrial control panels and distribution boards
• Switching and isolation of AC21A–AC23A loads up to 200 A
• Machinery and motor circuits requiring three-pole disconnection
• OEM equipment needing UL98 and IEC/EN 60947-3 compliance

Safety note: Installation and maintenance must be performed by qualified personnel. De-energise circuits before work, use appropriate J/200 fuse protection, and tighten terminals to 15–22 Nm within specified environmental limits.
