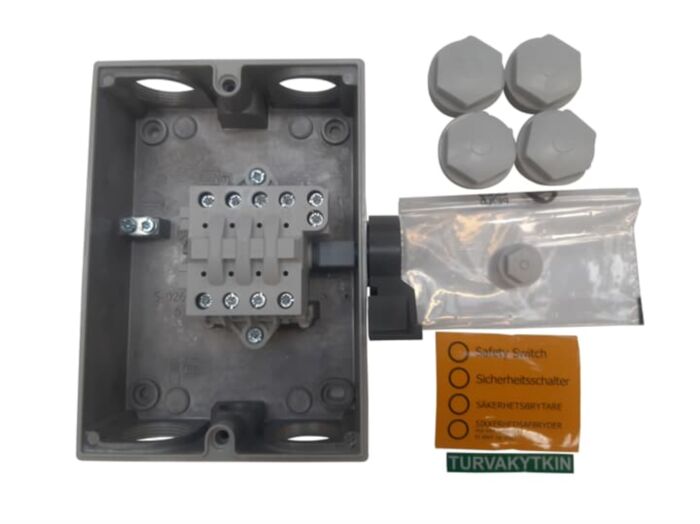

LBAS325TPN Safety switch
MPN: 2CMA142432R1000
Alt. SKU: LBAS325TPN
Special Price
£114.71
£95.59
Regular Price
£176.47
Why Choose the LBAS325TPN [2CMA142432R1000]
Safety switch, 3-p. 415V AC23 25A, 11kW. Mounted auxiliary contact: 1NO0NC. Aluminium enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches are made of rigid silumin. The paint is UV protected, and enclosure is protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have cable entries for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 3-pole safety switch with 1NO auxiliary contact.
- Voltage Rating: Rated operational voltage up to 690 V AC.
- Current Rating: AC-23A operational current 25 A at 380–415 V.
- Power Rating: 11 kW at 380–415 V (AC-23A).
- Contact Configuration: 3 poles with fixed neutral and PE terminals.
- Impulse Withstand Voltage: 8 kV rated impulse voltage.
- Insulation Voltage: Rated insulation voltage 690 V per IEC/EN 60664-1.
- Protection Rating: IP65 enclosure suitable for indoor and outdoor use.
- Terminal Type and Range: Screw clamp terminals for 0.75–10 mm² cables.
- Mechanical Durability: Aluminium enclosure with IK09 impact resistance and side-operated, padlockable handle.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the voltage and current rating of the safety switch?
The safety switch has a rated operational voltage of up to 690 V AC and a current rating of 25 A at 380–415 V (AC-23A).
What type of enclosure does the safety switch have?
The switch features an aluminium enclosure with an IP65 protection rating, suitable for both indoor and outdoor use.
What is the cable capacity for this safety switch?
The terminals are designed for screw clamp connections and can accommodate cables ranging from 0.75 to 10 mm².
Can the safety switch be padlocked?
Yes, the side-operated handle is padlockable and designed for use with one padlock.
What is the mechanical durability rating of the enclosure?
The aluminium enclosure has an IK09 impact resistance rating.
What type of auxiliary contact does the switch have?
The safety switch includes a mounted auxiliary contact configuration of 1NO0NC.
What standards does this safety switch conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA142432R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 168mm |
| Width | 138mm |
| Depth | 68mm |
| Amperage | 25A |
| Degree of protection (IP) | IP65 |
| KW Rating | 11kW |
| Number of Poles | 3 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | LBAS325TPN |
| Barcode | 7392696424325 |
| Product Image | For Illustration Purposes Only |
