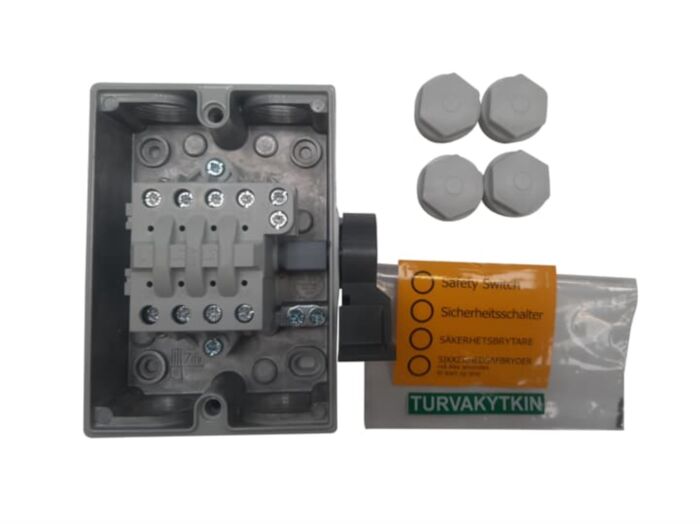

LBAS316TPN Safety switch
MPN: 2CMA142430R1000
Alt. SKU: LBAS316TPN
Special Price
£115.39
£96.16
Regular Price
£177.53
Why Choose the LBAS316TPN [2CMA142430R1000]
Safety switch, 3-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC. Aluminium enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches are made of rigid silumin. The paint is UV protected, and enclosure is protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have cable entries for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Technical Specification
- Function: 3-pole safety switch with 1 NO auxiliary contact.
- Rated Operational Voltage: Up to 690 V AC.
- Rated Operational Current: AC-23A, 16 A at 380–415 V.
- Rated Operational Power: 7.5 kW at 380–415 V AC-23A.
- Insulation Voltage: 690 V, IEC/EN 60664-1 standard.
- Impulse Withstand Voltage: 8 kV.
- Degree of Protection: IP65 for indoor and outdoor use.
- Terminal Type & Size: Screw clamp terminals for 0.75 to 10 mm² cables.
- Enclosure Material: Aluminium with UV-protected paint, IK09 impact resistance.
- Handle: Grey, side-operated, padlockable with interlocked cover.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the safety switch?
The rated operational current is 16 A at 380–415 V AC.
What type of enclosure does the safety switch have?
The safety switch has an aluminium enclosure with UV-protected paint, rated IP65 for indoor and outdoor use.
What is the cable capacity for this safety switch?
The switch accommodates screw clamp terminals for cables ranging from 0.75 to 10 mm².
Can the safety switch be padlocked?
Yes, the handle is padlockable and designed for use with one padlock.
What is the degree of protection for this product?
The product has a degree of protection rated at IP65, suitable for both indoor and outdoor applications.
What is the maximum rated operational voltage?
The maximum rated operational voltage is up to 690 V AC.
What standards does this safety switch conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CMA142430R1000 |
|---|---|
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 111mm |
| Depth | 60mm |
| Amperage | 16A |
| Degree of protection (IP) | IP65 |
| KW Rating | 7.5kW |
| Number of Poles | 3 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | LBAS316TPN |
| Barcode | 7392696424301 |
