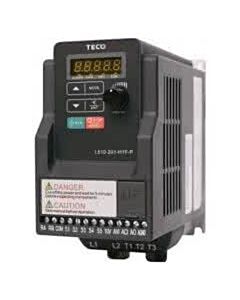

L510-410-SH3P TECO 400V 7.5 kW No Filter No Safe Torque Off 3 Phase
MPN: L510-410-SH3P
Alt. SKU: L510410SH3P
Why Choose the TECO L510-410-SH3P Variable Speed Drive?
The TECO L510-410-SH3P is a 400 V class industrial variable frequency drive designed for dependable control of three phase induction motors up to 7.5 kW. Built for panel-mounted installations, this IP20 inverter delivers stable speed regulation, reliable starting torque and consistent overload performance for conveyors, pumps, fans and general machinery.
The SH3P variant is supplied without integrated EMC filter or Safe Torque Off, making it suitable for engineered control panels where external filtering and safety circuits are specified at system level.
Key Features
- Rated motor output: 7.5 kW heavy duty.
- Input supply: 380–480 V AC, three phase.
- Control methods: V/Hz and sensorless vector control.
- Overload capability: 150% for 60 seconds (heavy duty rating).
- Output frequency range: 0–400 Hz.
- Integrated RS-485 communication with Modbus RTU protocol.
- IP20 panel mount enclosure for cabinet installation.
- No built-in EMC filter and no integrated Safe Torque Off on this model.
Technical Specifications
- Model: L510-410-SH3P
- Series: TECO L510
- Drive type: Variable Frequency Drive
- Motor rating (heavy duty): 7.5 kW
- Input voltage: 380–480 V AC ±10%, three phase
- Input frequency: 50/60 Hz
- Output voltage: 0–input voltage, three phase
- Output frequency: 0–400 Hz
- Control modes: V/Hz, sensorless vector
- Overload rating: 150% for 60 seconds
- Communication: RS-485 Modbus RTU
- Cooling: Forced air
- Enclosure: IP20
- Mounting: Panel mount
- Ambient operating temperature: -10 °C to +50 °C (without derating)
Typical Applications
- Conveyor and materials handling systems.
- Pump control and pressure boosting systems.
- Industrial fans and ventilation units.
- Packaging and processing equipment.
- OEM machinery requiring compact 400 V motor control.
Frequently Asked Questions
What motor size is supported?
The L510-410-SH3P is rated for three phase induction motors up to 7.5 kW under heavy duty conditions.
What supply voltage is required?
A 380–480 V AC three phase industrial supply is required.
Does this model include an EMC filter or Safe Torque Off?
No. The SH3P version does not include an integrated EMC filter or Safe Torque Off function.
What control methods are available?
The drive supports both V/Hz control and sensorless vector control for improved torque and speed performance.
Trusted by
Control panel builders, OEM engineers and industrial maintenance teams specify the TECO L510-410-SH3P where reliable 400 V motor control, predictable overload performance and straightforward commissioning are required.
| Manufacturer Part Number | L510-410-SH3P |
|---|---|
| Filter | No Filter |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP20 |
| KW Rating | 7.5kW |
| Output Phases | Three phase |
| VSD Range | L510 |
| Manufacturer | TECO |
| Alternative Product SKU | L510410SH3P |
