KXCML11 - METAL BODY C/W CONTACTS 1NO + 1NC SLOW
MPN: KXCML11
Special Price
£22.76
£18.97
Regular Price
£37.94
Why Choose the KXCML11?

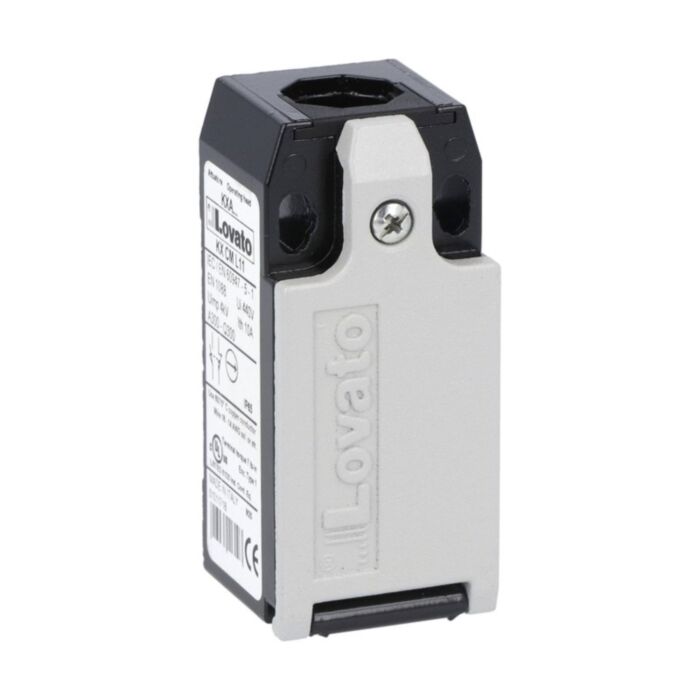

The Lovato KXCML11 is an Accessories body complete with contact block, designed to EN 50047 dimensions for easy integration. Featuring a robust aluminium-zinc alloy metal body and a bottom M20 cable entry, it provides 1NO+1NC slow action contacts for dependable control signalling. Compatible with Lovato KB…, KC…, KM… and KN… ranges, it offers a straightforward replacement or build option in industrial control assemblies.
Built to recognised standards, the KXCML11 conforms to IEC/EN 60947-1, IEC/EN 60947-5-1 and IEC/EN 60204-1, and also to UL508 and CSA C22.2 n° 14. Its slow-action contact block ensures consistent switching performance. With a sturdy metal housing and bottom-entry cable provision, this accessory streamlines assembly and maintenance across new installations and retrofit projects.
Key Benefits
- EN 50047 dimensions for straightforward panel and machine integration.
- Durable aluminium‑zinc alloy metal body for long service life.
- Bottom M20 cable entry simplifies wiring and cable management.
- 1NO+1NC slow action contacts for reliable control signalling.
- Compatible with Lovato KB…, KC…, KM…, KN… ranges.
- Conforms to IEC/EN 60947 and IEC/EN 60204-1 standards.
- UL508 and CSA C22.2 n° 14 compliance supports global use.
Technical Specification
- Type of product: Accessories
- Housing material: Aluminium-zinc alloy
- Type of contacts: 1NO+1NC Slow action
- Cable entry: M20 on the bottom
- Type of accessories: Body complete with contact block
- Accessories for: KB…, KC…, KM…, KN…
What’s Included
- Lovato KXCML11 body complete with contact block (1NO+1NC slow action)
- Integrated bottom M20 cable entry housing
- Basic installation and safety information
Applications
- Compatible body for Lovato KB…, KC…, KM…, KN… assemblies
- Industrial control panels and automation enclosures to EN 50047
- Retrofit and maintenance replacements in existing EN 50047 installations
- Machine control circuits requiring 1NO+1NC slow action contacts
Frequently Asked Questions
What is the contact configuration of the KXCML11?
It provides 1NO+1NC slow action contacts for control signalling.
Which Lovato ranges is this accessory compatible with?
It is an accessory for Lovato KB…, KC…, KM… and KN… ranges.
Where is the cable entry located and what size is it?
It has an M20 cable entry on the bottom of the body.
Which standards does the KXCML11 conform to?
It conforms to EN 50047, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1, UL508 and CSA C22.2 n° 14.
What is the housing material?
The body is made from aluminium-zinc alloy metal.
Safety note: Installation and wiring should be performed by competent personnel. Isolate power before work and follow IEC/EN 60204-1 and IEC/EN 60947 requirements and the manufacturer’s instructions.
| Manufacturer Part Number | KXCML11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975113103 |
