KSL3F - METAL LONG FLAT LEVER 1NO/1NC 168 3MM FA
MPN: KSL3F
Special Price
£14.82
£12.35
Regular Price
£24.70
Why Choose the KSL3F?

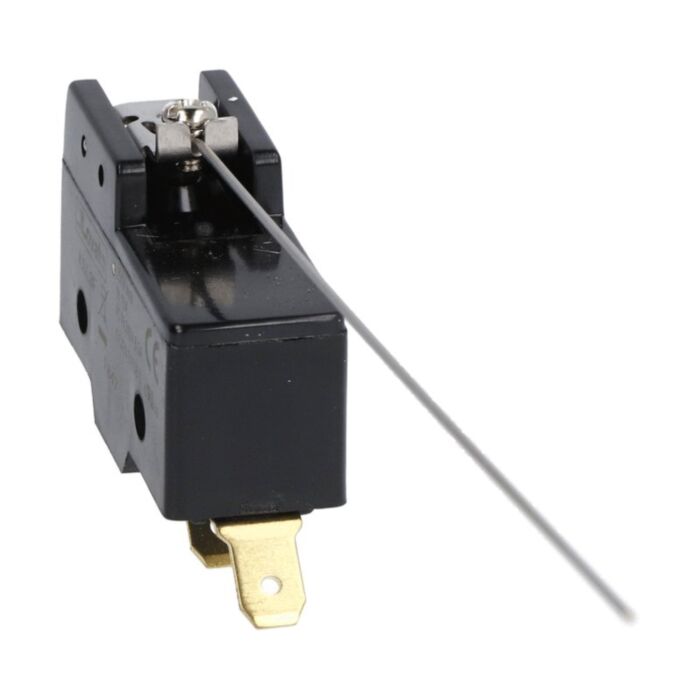

Designed for precise actuation, the Lovato KSL3F plastic micro switch pairs a long metal lever with reliable contacts for flexible control. This K series device features a 168.3 mm (6.63 in) flat cylindrical lever, 1NO/NC contact arrangement and Faston terminals for quick wiring. With a robust polymer thermoplastic housing, SKU KSL3F is a dependable choice for OEMs and panel builders seeking consistent switching performance in compact assemblies.
Built to perform over 20,000,000 mechanical cycles, the KSL3 designation offers an Ith of 15 A and an operating range from -25 to +70 °C. Conformance to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14 underlines quality. Its Pollution degree 3 rating and 38 g lightweight build simplify integration where reliable, long-lever actuation and Faston connectivity are required.
Key Benefits
- 168.3 mm flat cylindrical metal lever enables precise, sensitive actuation.
- Durable polymer thermoplastic housing suited to demanding installations.
- 1NO/NC contacts allow versatile wiring and control logic.
- Faston terminals support quick, secure push-on connections.
- Ith 15 A rating handles robust switching requirements.
- 20,000,000 mechanical cycles for extended operational life.
- Operates from -25 to +70 °C for dependable performance.
Technical Specification
- Product type designation: KSL3
- Ith (IEC): 15 A
- Weight: 38 g
- Mechanical life: 20000000 cycles
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KSL3F plastic micro switch with metal lever
- Product datasheet (manufacturer PDF)
- Manufacturer compliance and standards information
Applications
- Position sensing and actuation in machinery and automation
- Limit detection on conveyors and mechanical linkages
- Panel and enclosure interlocks with long-lever actuation
- OEM equipment requiring Faston-connected microswitches
- General-purpose switching within specified temperature ranges
Frequently Asked Questions
What is the contact configuration?
The KSL3F has 1NO/NC contacts for flexible control wiring.
What actuator does it use and how long is it?
It uses a metal flat cylindrical lever, 168.3 mm (6.63 in) long.
What type of terminals are provided?
It is equipped with Faston terminals for quick push-on connections.
What is the current rating and mechanical life?
Ith is 15 A under IEC. Mechanical life is 20,000,000 cycles.
What is the operating temperature range?
The operating range is -25 to +70 °C; storage is -40 to +70 °C.
Safety note: Install and operate within the specified ratings and temperature range. Isolate power before wiring, use suitable Faston connectors, and follow relevant IEC/EN and national regulations.
| Manufacturer Part Number | KSL3F |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975157466 |
