KSL2V - METAL 54MM LONG FLAT LEVER SCREW 1NO+1NC
MPN: KSL2V
Special Price
£10.39
£8.66
Regular Price
£17.33
Why Choose the KSL2V?

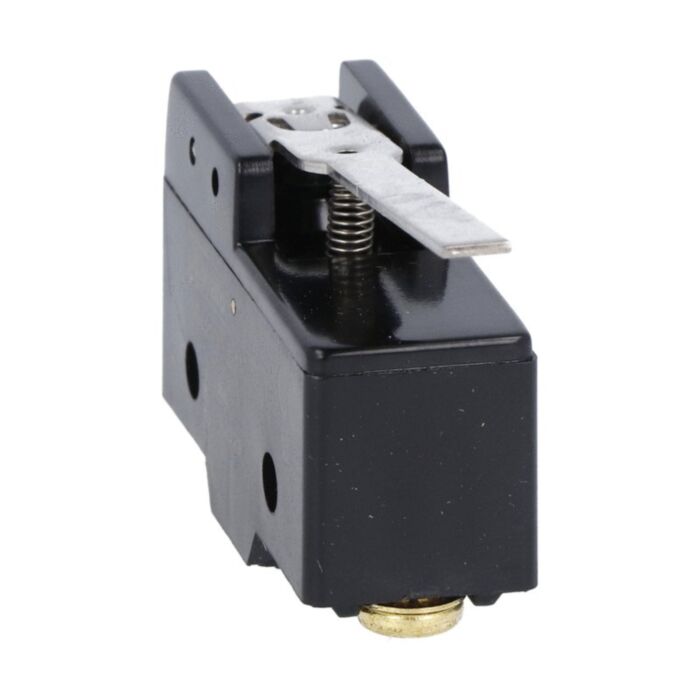

The Lovato KSL2V plastic micro switch from the K series pairs a robust polymer thermoplastic housing with a flat metal lever for reliable, repeatable actuation. With 1NO/NC contacts and secure screw terminals, it integrates easily into control panels and machinery. Rated Ith 15 A and backed by multi-standard conformity, it delivers dependable switching for industrial control and signalling duties.
Engineered for longevity, the KSL2V offers a mechanical life of 20,000,000 cycles and operates from -25 to +70 °C, with storage down to -40 °C. Pollution degree 3 suitability and the KSL2 designation underscore its industrial intent, while compliance with IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14 supports global adoption.
Key Benefits
- Polymer thermoplastic housing provides robust, lightweight construction for industrial environments.
- Flat metal lever delivers precise, consistent actuation and easy mechanical interfacing.
- 1NO/NC contacts enable flexible wiring for normally open or closed circuits.
- Screw terminals ensure secure, serviceable connections during installation and maintenance.
- Ith 15 A rating supports higher loads in control and power interfaces.
- 20,000,000 mechanical cycles reduce downtime and extend service intervals.
- Operates from -25 to +70 °C for reliable performance across temperatures.
- Complies with IEC/EN 60947 series, IEC/EN 61058-1, UL508, and CSA.
Technical Specification
- Product type designation: KSL2
- Ith (IEC): 15 A
- Weight: 35 g
- Mechanical life: 20000000 cycles
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KSL2V plastic micro switch with metal lever, 1NO/NC contacts
- Manufacturer datasheet (downloadable PDF)
- Basic installation and wiring guidance
Applications
- Industrial control panels and signalling circuits
- Machinery limit and position detection
- HVAC and appliance actuation tasks
- Conveyor systems and material handling equipment
Frequently Asked Questions
What is the contact configuration of the Lovato KSL2V?
It has 1NO/NC contacts, supporting normally open and normally closed circuits.
What terminal type does this micro switch use?
It features screw terminals for secure, serviceable wiring.
What is the rated thermal current (Ith) for KSL2V?
The Ith (IEC) is 15 A.
What operating temperature range does it support?
The operating range is -25 to +70 °C, with storage down to -40 °C.
Which standards does the KSL2V conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508, and CSA C22.2 n° 14.
Safety note: Installation and wiring should be performed by qualified personnel with power isolated, following applicable standards and observing the specified temperature limits and Pollution Degree 3 conditions.
| Manufacturer Part Number | KSL2V |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975148280 |
