KSL2S - METAL 54MM LONG FLAT LEVER SOLDER 1NO+1N
MPN: KSL2S
Special Price
£9.65
£8.04
Regular Price
£16.08
Why Choose the KSL2S?

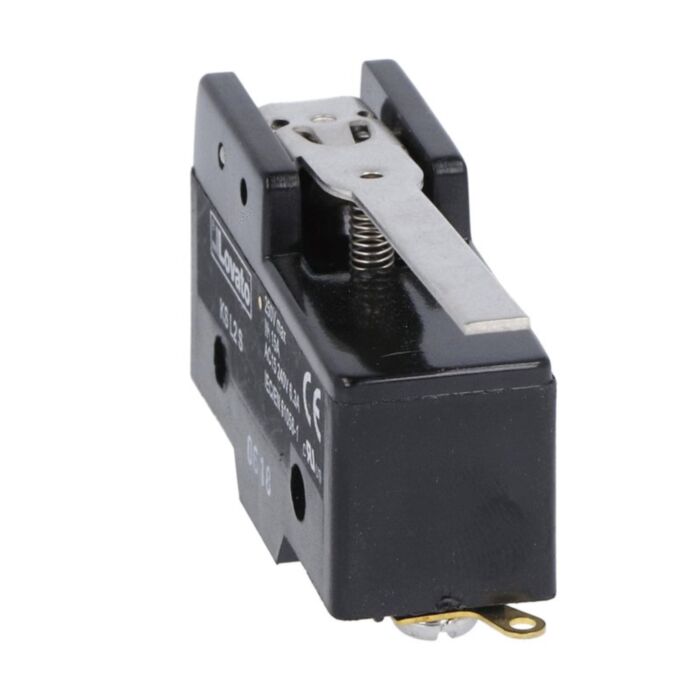

The Lovato KSL2S plastic micro switch delivers precise actuation via a 54mm (2.13in) flat metal lever and dependable 1NO/NC contacts. Built with a robust polymer thermoplastic housing and convenient solder terminals, this K series device integrates smoothly into assemblies. Rated Ith (IEC) 15 A and compliant with leading industrial standards, it supports accurate control, signalling and position-sensing duties across demanding applications.
With a mechanical life of 20,000,000 cycles and operation from -25 to +70 °C, the KSL2 offers lasting reliability in varied environments. Weighing 35 g with Pollution Degree 3 classification, it meets IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14. specifications, giving confidence in quality, repeatable performance and straightforward integration into OEM equipment and control panels.
Key Benefits
- 54 mm flat metal lever for precise, repeatable mechanical actuation.
- Versatile 1NO/NC contacts simplify wiring and control logic.
- Solder terminals provide secure, permanent connections during assembly.
- Polymer thermoplastic housing supports robust, reliable field use.
- Long 20,000,000-cycle mechanical life reduces maintenance interventions.
- Operates from -25 to +70 °C for wider ambient suitability.
- Ith (IEC) 15 A for elevated thermal current capability.
- Conformity with IEC/EN, UL and CSA standards assures quality compliance.
Technical Specification
- Product type designation: KSL2
- Ith (IEC): 15 A
- Weight: 35 g
- Mechanical life: 20000000 cycles
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KSL2S plastic micro switch with flat metal lever
- Pre-fitted 54 mm lever arm
- Manufacturer datasheet (downloadable)
- Protective packaging
Applications
- Limit and position sensing in machinery and automation
- Control panels and switchgear signalling functions
- Appliance and equipment actuation and interlocks
- HVAC and building services mechanical detection
- Conveyors and material handling position feedback
Frequently Asked Questions
What contact configuration does the Lovato KSL2S provide?
It has 1NO/NC contacts for Normally Open and Normally Closed functions.
How long is the actuator lever on this micro switch?
The flat metal lever is 54 mm (2.13 in) long.
What is the mechanical life rating?
It is rated for 20,000,000 mechanical cycles.
Which standards does the KSL2S comply with?
IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14.
What are the terminal and operating temperature details?
It has solder terminals and an operating range of -25 to +70 °C.
Safety note: Install and wire by qualified personnel only. Isolate power before soldering, and operate strictly within the specified electrical and environmental ratings and relevant standards.
| Manufacturer Part Number | KSL2S |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975148150 |
