KSL1V - METAL 63MM LONG FLAT LEVER SCREW 1NO+1NC
MPN: KSL1V
Special Price
£9.91
£8.26
Regular Price
£16.51
Why Choose the KSL1V?

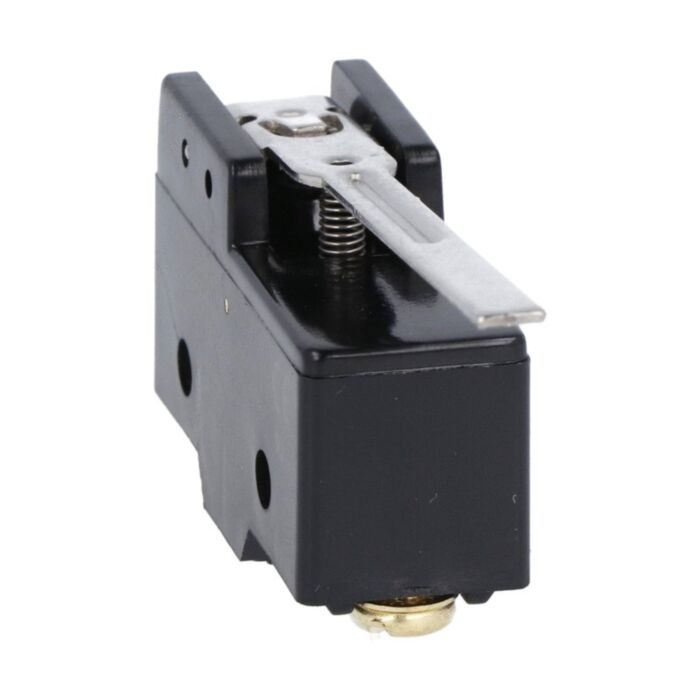

The Lovato KSL1V plastic micro switch from the K series combines a durable polymer thermoplastic housing with a precise 63mm flat metal lever for reliable actuation. With 1NO/NC contacts and secure screw terminals, SKU KSL1V offers versatile integration in control circuits. Rated Ith 15 A and designed for demanding environments, it supports consistent performance across a broad operating temperature range.
Engineered for longevity, the KSL1V delivers up to 20,000,000 mechanical cycles and conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14. Operating from -25 to +70°C, with storage down to -40°C, and a pollution degree of 3, this compact 35 g switch ensures dependable switching in industrial control panels and automation systems.
Key Benefits
- 63mm flat metal lever for precise and consistent actuation.
- 1NO/NC changeover contacts for flexible control logic.
- Screw terminals provide secure, straightforward wiring.
- 15 A Ith rating supports robust switching capacity.
- Up to 20,000,000 mechanical cycles for long service life.
- Operates from -25 to +70°C to suit varied environments.
- Conforms to IEC/EN 60947, IEC/EN 61058-1, UL508 and CSA C22.2 standards.
- Lightweight polymer thermoplastic housing for durability and insulation.
Technical Specification
- Product type designation: KSL1
- Ith (IEC): 15 A
- Weight: 35 g
- Mechanical life: 20000000 cycles
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KSL1V plastic micro switch (63mm flat metal lever)
- Manufacturer datasheet (downloadable)
- Compliance and standards information
Applications
- Industrial control panels and automation equipment
- Limit and position sensing in machinery
- Appliance and equipment actuation tasks
- HVAC and building services switching
- General-purpose control circuits requiring 1NO/NC
Frequently Asked Questions
What contact configuration does the Lovato KSL1V use?
It features 1NO/NC changeover contacts for flexible control applications.
How long is the actuator lever?
The flat metal lever is 63 mm (2.48 in) long.
What is the mechanical life rating?
It is rated for 20,000,000 mechanical cycles.
What is the operating temperature range?
The operating range is -25 to +70 °C; storage is -40 to +70 °C.
Which standards does it conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Isolate power before wiring, and operate within the specified electrical, mechanical and environmental ratings.
| Manufacturer Part Number | KSL1V |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975148273 |
