KSL1S - METAL 63MM LONG FLAT LEVER SODER 1NO+1NC

Why Choose the KSL1S?

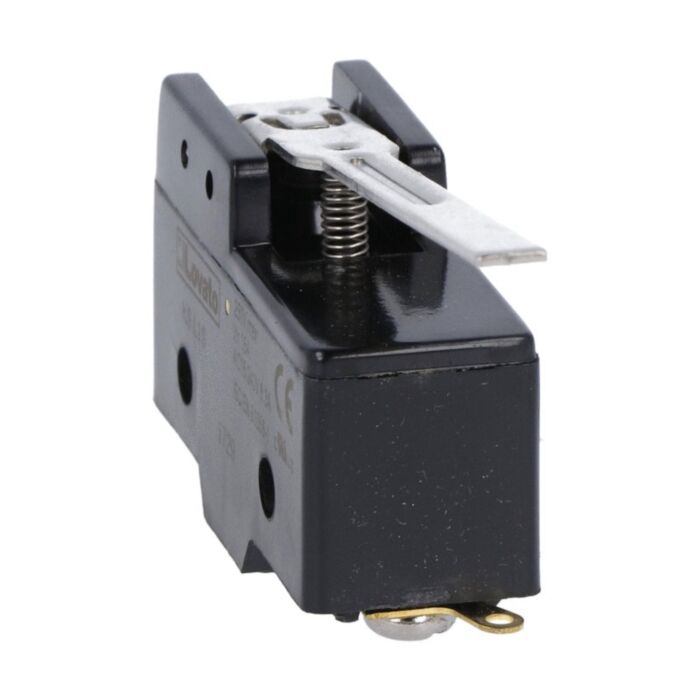

Lovato KSL1S plastic micro switch combines a durable polymer thermoplastic housing with a precise 63 mm (2.48 in) metal flat lever. With 1NO/NC contacts and solder terminals, the KSL1S is designed for dependable signalling and control in compact assemblies. Ith (IEC) 15 A and a rated mechanical life of 20,000,000 cycles support robust performance in demanding industrial environments.

Part of the K series (designation KSL1), this Lovato plastic micro switch operates reliably from -25 to +70 °C and weighs just 35 g. Conformity to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14 underlines quality and safety. Rated Pollution Degree 3, it suits industrial control panels, automation and equipment requiring lever actuation.

Key Benefits

• Robust polymer thermoplastic housing for long-term, industrial reliability.
• 63 mm metal flat lever for precise, repeatable actuation.
• 1NO/NC contacts enable flexible signalling and control options.
• Solder terminals allow straightforward, permanent wiring connections.
• High mechanical life rated at 20,000,000 cycles.
• Ith (IEC) 15 A thermal current capacity.
• Operates from -25 to +70 °C ambient temperatures.
• Conforms to IEC/EN 60947 series, IEC/EN 61058-1, UL508, CSA.

Technical Specification

• Product type designation: KSL1
• Ith (IEC): 15 A
• Weight: 35 g
• Mechanical life: 20000000 cycles
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +70 °C
• Pollution degree: 3

What’s Included

• Lovato KSL1S plastic micro switch with 63 mm metal flat lever
• Basic installation and safety information
• Protective packaging for transit

Applications

• Position and limit detection in machinery and automation systems
• Control panels and enclosures requiring lever-actuated switching
• Appliances and equipment using soldered microswitch connections
• General industrial equipment needing reliable 1NO/NC contact control

Safety note: Install and operate within specified ratings and temperatures, using correct soldering practices. Ensure compliance with applicable standards and suitability for Pollution Degree 3 environments.
