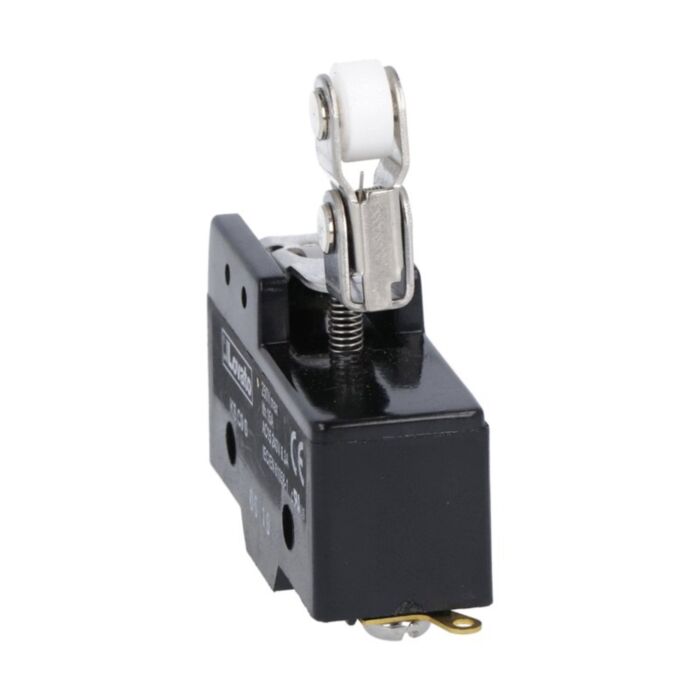

KSC9S - ONE WAY ROLLER LEVER 1NO+1NC FASTON TERM
MPN: KSC9S
Special Price
£13.43
£11.19
Regular Price
£22.38
Why Choose the KSC9S?
Engineered for reliable actuation in compact assemblies, the Lovato KSC9S plastic micro switch combines a roller centre push lever with a one‑way roller action for precise, repeatable switching. With 1NO/NC contacts and convenient solder terminals, this K series device integrates easily into panels and machinery. The robust polymer thermoplastic housing supports demanding duty, while the KSC9S SKU ensures easy specification, sourcing and traceability across maintenance and OEM builds.
Rated at 15 A (Ith IEC) and tested to 20,000,000 mechanical cycles, this switch delivers longevity in high‑usage applications. It operates from −25 to +70 °C and stores from −40 to +70 °C, aligning with Pollution Degree 3 environments. Conformity to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14 assures compatibility with global control standards.
Key Benefits
- Roller centre push lever enables precise, repeatable actuation with one-way roller guidance.
- 1NO/NC contacts offer flexible circuit integration for control or signalling.
- 15 A (Ith) rating suits robust industrial and appliance switching duties.
- 20 million mechanical cycles for long service life in high‑duty applications.
- Solder terminals simplify secure wiring in compact assemblies and PCBs.
- Polymer thermoplastic housing delivers durable, lightweight performance and insulation.
- Certified to IEC/EN, UL and CSA standards for assured compliance.
Technical Specification
- Product type designation: KSC9
- Ith (IEC): 15 A
- Weight: 38 g
- Mechanical life: 20000000 cycles
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KSC9S plastic micro switch unit
- Manufacturer datasheet (downloadable PDF)
- Basic installation and safety instructions
- Protective packaging for transit
- Compliance information per listed standards
Applications
- Limit and position sensing in machinery and conveyors
- Actuation feedback in industrial control panels
- Appliance door or hatch interlocks and safety circuits
- HVAC equipment and damper position detection
- Automated equipment requiring roller‑actuated micro switches
Frequently Asked Questions
What is the contact configuration of the Lovato KSC9S?
It features 1NO/NC contacts for versatile control and signalling circuits.
What current rating does the KSC9S support?
Its Ith (IEC) rating is 15 A.
What is the operating temperature range?
The operating range is −25 to +70 °C, with storage from −40 to +70 °C.
What type of terminals does this switch have?
It is supplied with solder terminals for secure, compact connections.
Which standards does the KSC9S conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14.
Safety note: Install and wire only by qualified personnel. De-energise circuits before soldering, observe the specified temperature limits and Pollution Degree 3, and follow the applicable IEC/EN and UL standards.
| Manufacturer Part Number | KSC9S |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975148198 |
