KSC9F - ONE WAY ROLLER LEVER 1NO+1NC FASTON TERM
MPN: KSC9F
Special Price
£14.44
£12.03
Regular Price
£24.05
Why Choose the KSC9F?

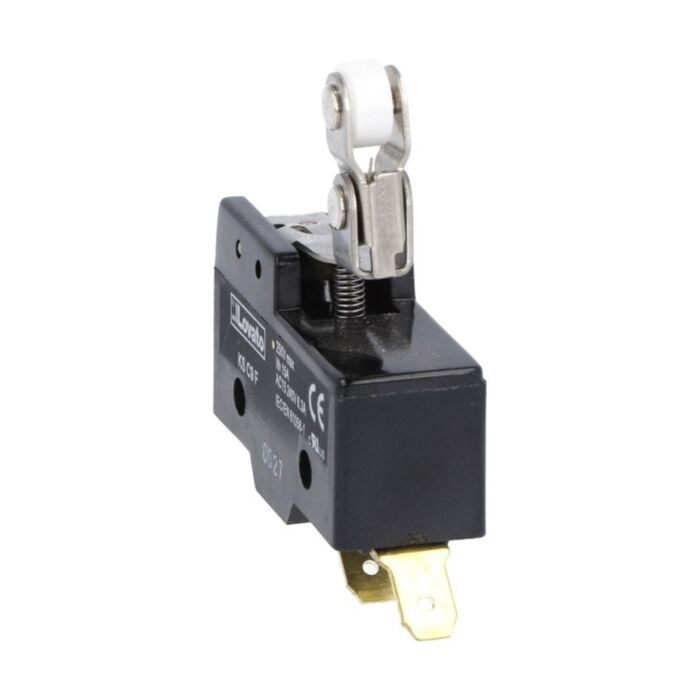

The Lovato KSC9F Plastic Micro Switch delivers dependable actuation in compact assemblies. Part of the K series, it features a top roller push plunger with a one-way roller lever for precise, repeatable switching. Its 1NO/NC contacts and Faston terminals simplify integration, while the polymer thermoplastic housing supports robust everyday use across control panels, appliances and machinery.
Rated Ith 15 A with a mechanical life of 20,000,000 cycles, this switch offers long service in demanding duty. Operating from -25 to +70 °C (storage -40 to +70 °C) and Pollution Degree 3, it meets IEC/EN 60947-1, 60947-5-1 and 61058-1, plus UL508 and CSA C22.2 n° 14. Product type designation: KSC9; weight: 39 g.
Key Benefits
- Top roller push plunger with one-way lever for precise actuation.
- 1NO/NC contacts offer flexible switching in compact layouts.
- Faston terminals for straightforward, reliable wiring and replacements.
- Ith 15 A rating supports robust industrial control requirements.
- Mechanical life of 20,000,000 cycles ensures long service.
- Operating range -25 to +70 °C suits varied environments.
- Conforms to IEC/EN 60947-1, 60947-5-1, 61058-1, UL508 and CSA.
- Durable polymer thermoplastic housing resists everyday wear.
Technical Specification
- Product type designation: KSC9
- Ith (IEC): 15 A
- Weight: 39 g
- Mechanical life: 20000000 cycles
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KSC9F Plastic Micro Switch
- Quick start and safety information (where applicable)
- Protective packaging for transit
Applications
- Industrial control panels and equipment interlocks
- Appliance door or position detection
- Machinery limit and presence sensing
- Conveyor and actuator end-of-travel signalling
- OEM assemblies requiring compact roller-actuated switching
Frequently Asked Questions
What contact configuration does the KSC9F provide?
It has 1NO/NC contacts for versatile switching.
What is the mechanical life of this micro switch?
It is rated for 20,000,000 mechanical cycles.
What temperatures can the KSC9F operate in?
Operating range is -25 to +70 °C; storage is -40 to +70 °C.
Which terminals does the KSC9F use?
It features Faston terminals for connection.
Which standards does this product meet?
It conforms to IEC/EN 60947-1, 60947-5-1, 61058-1, UL508 and CSA C22.2 n° 14.
Safety note: Install and operate the micro switch within the stated ratings and environmental limits, following relevant standards and local regulations. Only qualified personnel should perform wiring and commissioning.
| Manufacturer Part Number | KSC9F |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975148457 |
