KSC2V - ROLLER PUSH LEVER 38MMLONG LEVER 1NO/1NC
MPN: KSC2V
Special Price
£11.20
£9.33
Regular Price
£18.67
Why Choose the KSC2V?

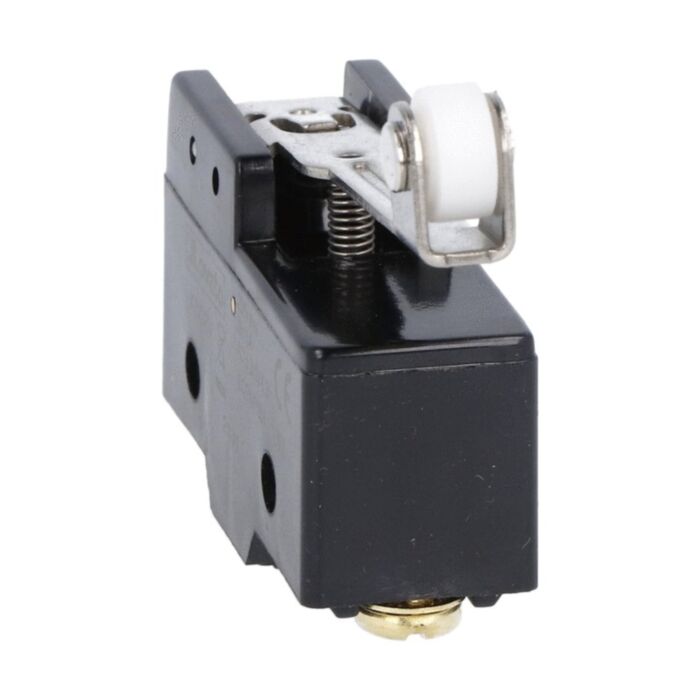

Lovato’s KSC2V plastic micro switch is engineered for reliable limit and position sensing in industrial applications. This roller centre push lever variant features a 48.5mm (1.91in) long lever for consistent actuation, with 1NO/NC contacts and secure screw terminals to simplify wiring. Its polymer thermoplastic housing supports robust use while maintaining a compact footprint, making the KSC2V a versatile choice for control panels and machinery.
Designed for longevity and compliance, the KSC2 series offers 20,000,000 mechanical cycles and a 15 A Ith (IEC) rating to suit demanding duty. Operating reliably from -25 to +70 °C and built for Pollution Degree 3 environments, it meets IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14. A lightweight 37 g construction aids easy installation and maintenance.
Key Benefits
- Roller centre push lever with 48.5 mm reach for precise, repeatable actuation.
- 1NO/NC contacts deliver flexible signalling and control integration.
- Screw terminals ensure secure, straightforward wiring and servicing.
- Rated Ith 15 A under IEC for robust thermal current handling.
- Long mechanical life of 20,000,000 cycles reduces downtime.
- Operates from -25 to +70 °C for varied environments.
- Meets IEC/EN, UL508 and CSA standards for assured conformity.
- Lightweight 37 g build simplifies handling and installation.
Technical Specification
- Product type designation: KSC2
- Ith (IEC): 15 A
- Weight: 37 g
- Mechanical life: 20000000 cycles
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KSC2V plastic micro switch (roller centre push lever)
- Basic installation and safety information
- Protective packaging for transit
Applications
- Limit and position sensing on machinery and conveyors
- Actuation feedback in control panels and automation systems
- Presence or end-of-travel detection in industrial equipment
- HVAC and appliance switching where 1NO/NC is required
Frequently Asked Questions
What is the contact configuration of the KSC2V?
It has 1NO/NC contacts for versatile signalling and control.
What current rating does this micro switch support?
Its Ith (IEC) is 15 A. For utilisation categories, consult the manufacturer data.
What is the operating temperature range?
The specified operating range is -25 to +70 °C.
How durable is the mechanism?
It is rated for 20,000,000 mechanical cycles.
Which standards does it conform to?
IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14.
Safety note: Installation and wiring should be performed by qualified personnel. Isolate power before work, observe the specified current, temperature and pollution degree, and tighten screw terminals to the recommended torque.
| Manufacturer Part Number | KSC2V |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975148297 |
