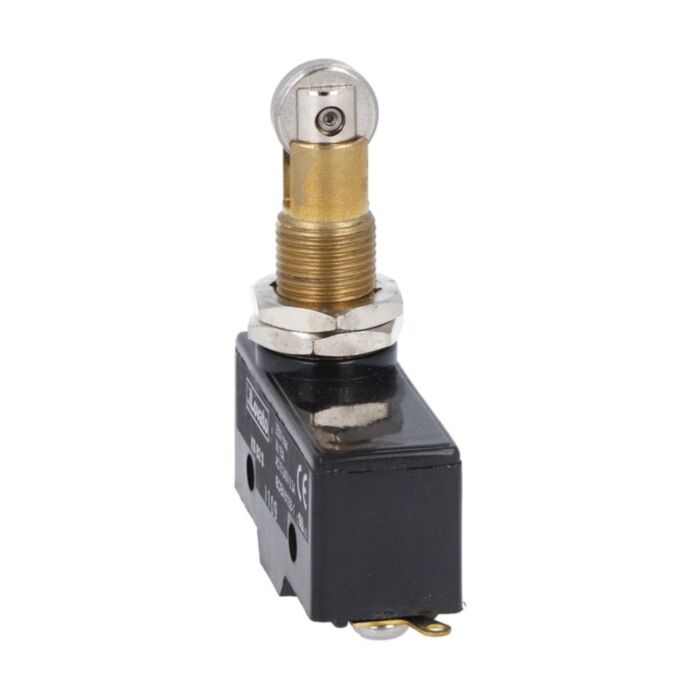

KSB2S - M12 FIXINF HEAD 1NO+1NC 90 deg ROLLER SOLDE
MPN: KSB2S
Special Price
£16.07
£13.39
Regular Price
£26.78
Why Choose the KSB2S?
Built for precise actuation in compact assemblies, the Lovato KSB2S plastic micro switch features a top roller push plunger with a 90° roller and an M12 fixing head for straightforward mounting. Its 1NO/NC contacts suit versatile control logic, while solder terminals simplify integration. As part of the K series (designation KSB2), this robust unit delivers reliable, repeatable switching performance in demanding industrial and appliance applications.
Engineered with a durable polymer thermoplastic housing, KSB2S combines long service life and safety compliance. It is rated Ith 15 A, offers 20,000,000 mechanical cycles, and operates from -25 to +70 °C (storage -40 to +70 °C), Pollution Degree 3. Conforming to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14, it’s a reliable choice for control circuits and position detection.
Key Benefits
- Compact top roller push plunger ensures precise, repeatable actuation on cams and guides.
- M12 fixing head enables quick, secure mounting in standardised assemblies.
- 1NO/NC contacts deliver flexible switching for control and interlock schemes.
- Solder terminals provide dependable terminations for production and repair.
- Polymer thermoplastic housing offers durability in industrial and appliance use.
- 15 A Ith rating supports robust control currents under IEC conditions.
- 20,000,000 mechanical cycles reduce downtime and maintenance frequency.
- Wide -25 to +70 °C operating range maintains performance across environments.
Technical Specification
- Product type designation: KSB2
- Ith (IEC): 15 A
- Weight: 57 g
- Mechanical life: 20000000 cycles
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KSB2S plastic micro switch, 1NO/NC contacts
- Integrated top roller push plunger with 90° roller
- M12 fixing head for mounting
- Solder terminals ready for wiring
Applications
- Limit and position detection on cams, levers and guides
- General industrial control and interlock circuits
- Appliance and equipment switching per IEC/EN 61058-1
- Conveyor, actuator and mechanism end-of-travel sensing
- OEM assemblies requiring compact, high-cycle micro switches
Frequently Asked Questions
What is the contact configuration of the Lovato KSB2S micro switch?
It has 1NO/NC contacts for versatile switching.
What is the rated thermal current (Ith) for KSB2S?
The Ith rating is 15 A according to IEC.
What operating temperature range does the KSB2S support?
Its operating range is -25 to +70 °C; storage is -40 to +70 °C.
Which standards does the KSB2S conform to?
IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14.
What is the mechanical life of the KSB2S?
It is rated for 20,000,000 mechanical cycles.
Safety note: Install and wire by competent personnel per applicable IEC/EN standards and the manufacturer’s datasheet. Isolate power before work, and observe the -25 to +70 °C and Pollution Degree 3 limits.
| Manufacturer Part Number | KSB2S |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975148136 |
