KSA1S - PIN MICRO SWITCH A WELDING CONTACTS
MPN: KSA1S
Special Price
£8.80
£7.33
Regular Price
£14.65
Why Choose the KSA1S?

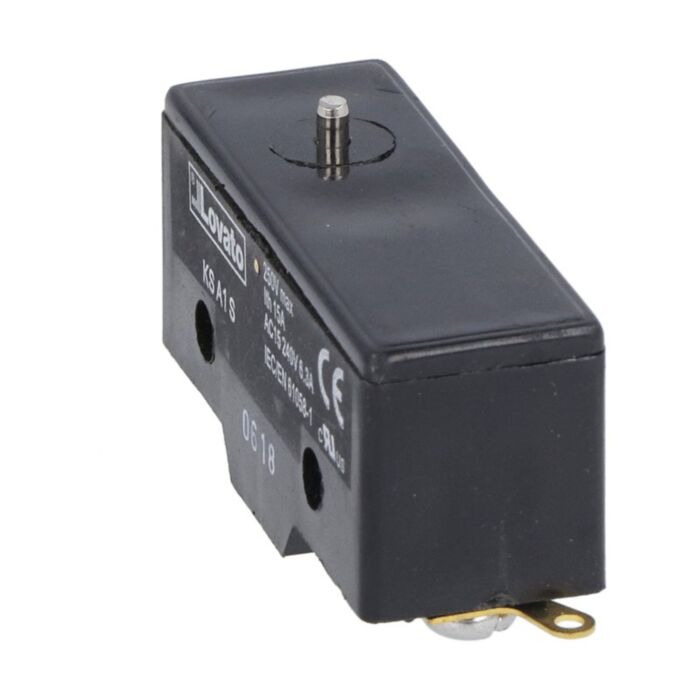

Designed for reliable actuation in compact assemblies, the Lovato KSA1S plastic micro switch combines K series engineering with a top push rod and metal plunger pin. This 1NO/NC device features solder terminals for straightforward integration and a robust polymer thermoplastic housing. As a versatile plastic micro switch, SKU KSA1S delivers precise switching performance for OEMs and maintenance teams seeking a trusted component from Lovato.
Built for demanding duty, the KSA1S offers 15 A Ith (IEC) and an exceptional mechanical life of 20,000,000 cycles. It operates from -25 to +70 °C and stores from -40 to +70 °C, with Pollution Degree 3 suitability. Conformance to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14 supports integration across regulated industrial and OEM applications.
Key Benefits
- Top push rod metal plunger enables precise, repeatable actuation.
- Versatile 1NO/NC contacts simplify control logic and wiring.
- 15 A Ith supports robust switching in demanding circuits.
- 20,000,000-cycle mechanical life reduces maintenance interventions.
- Polymer thermoplastic housing offers durable, lightweight protection.
- Solder terminals provide secure, permanent electrical connections.
- Operates from -25 to +70 °C for varied environments.
- Compliant with IEC/EN, UL, and CSA standards for confidence.
Technical Specification
- Product type designation: KSA1
- Ith (IEC): 15 A
- Weight: 31 g
- Mechanical life: 20000000 cycles
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KSA1S plastic micro switch (K series, top push rod)
- Manufacturer datasheet (PDF)
Applications
- Industrial control and automation mechanisms requiring precise actuation
- Machinery limit or position sensing with 1NO/NC switching
- Appliances and equipment needing compact, solder-terminal micro switching
- HVAC and building systems for reliable on/off detection
- OEM panel building and maintenance replacements
Frequently Asked Questions
What is the contact configuration of the Lovato KSA1S?
It has 1NO/NC contacts for normally open and normally closed switching.
What is the current rating (Ith) for this micro switch?
The Ith (IEC) rating is 15 A.
What are the operating and storage temperature ranges?
Operating temperature is -25 to +70 °C, and storage temperature is -40 to +70 °C.
Which standards does the KSA1S conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508 and CSA C22.2 n° 14.
How long is the mechanical life of this switch?
It is rated for 20000000 mechanical cycles.
Safety note: Install and wire by competent personnel. Isolate circuits before soldering, observe -25 to +70 °C operation and Pollution Degree 3 conditions, and comply with applicable IEC/EN, UL and CSA standards.
| Manufacturer Part Number | KSA1S |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975148075 |
