KR200S11 - 1-PEDAL METAL FOOT SWITCH 1NO+ 1NC SNAP
MPN: KR200S11
Special Price
£146.20
£121.83
Regular Price
£243.66
Why Choose the KR200S11?

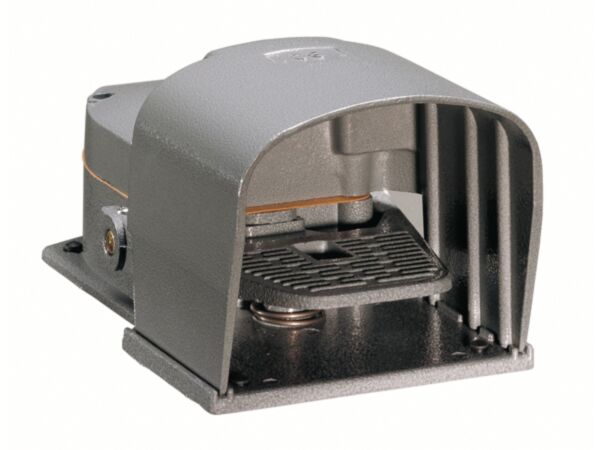

Built for dependable foot-operated control, the Lovato KR200S11 foot switch from the K series features one pedal with free actuation and a protective cover. Its rugged aluminium-zinc alloy body and 1NO+1NC snap action contacts deliver reliable switching in demanding environments. A convenient 1 x M20 cable entry streamlines wiring, making KR200S11 an ideal choice for industrial control panels and machinery where hands-free operation is essential.
Engineered to perform, the KR200S11 offers Ith 10 A and a rated impulse withstand voltage of 4 kV for robust circuit resilience. It operates between -25 to +70 °C and meets Pollution Degree 3. It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447. Short-circuit protection is achieved with a 10 gG fuse.
Key Benefits
- Robust aluminium-zinc alloy housing for long service in industrial settings.
- One pedal with cover enables safe, hands-free operation.
- 1NO+1NC snap action contacts provide positive, reliable switching.
- M20 cable entry simplifies installation and strain relief.
- Ith 10 A rating suits a wide range of control circuits.
- 4 kV impulse withstand enhances surge and transient immunity.
- Wide -25 to +70 °C operating temperature for varied environments.
- Conforms to IEC/EN 60947 and 60204-1 standards.
Technical Specification
- Product type designation: KR200
- Rated impulse withstand voltage Uimp: 4 kV
- Short-circuit protection fuse: 10 gG fuse
- Ith (IEC): 10 A
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KR200S11 foot switch (one pedal, with cover)
- Integrated aluminium-zinc alloy body
- Built-in 1 x M20 cable entry
Applications
- Industrial machinery start/stop control
- Operator control in assembly and packaging lines
- Hands-free actuation in workshops and test stations
- Pedal-initiated control for material handling equipment
Frequently Asked Questions
What contact configuration does the KR200S11 provide?
It uses 1NO+1NC snap action contacts for quick, reliable switching.
What is the rated thermal current (Ith)?
The Ith (IEC) is 10 A.
What is the operating temperature range?
It operates from -25 to +70 °C; storage is -40 to +70 °C.
What cable entry size does it have?
The housing provides 1 x M20 cable entry.
Which standards does it conform to?
IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1, and EN 60447.
Safety note: Install and wire only by qualified personnel in accordance with applicable standards. Provide short-circuit protection using a 10 gG fuse and observe the specified current, voltage and temperature limits.
| Manufacturer Part Number | KR200S11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975126073 |
