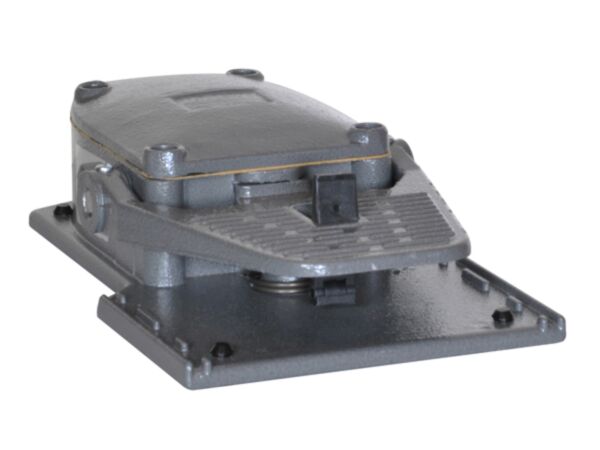

KR110S11 - 1-PEDAL METAL FOOT SWITCH 1NO+ 1NC SNAP
MPN: KR110S11
Special Price
£124.96
£104.13
Regular Price
£208.26
Why Choose the KR110S11?
Designed for reliable foot-operated control, the Lovato KR110S11 foot switch combines a one-pedal layout with a safety lever in a robust aluminium-zinc alloy body. Its open K Series design features 1NO+1NC snap-action contacts for responsive switching and a single M20 cable entry, delivering compact, hands-free actuation where panel space is limited and operator safety is paramount.
Engineered to perform in demanding environments, it offers Ith 10 A and 4 kV impulse withstand, with reliable operation from -25 to +70 °C and Pollution Degree 3. For protection, use a 10 gG fuse. Conformity to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447 supports integration into industrial machinery and safety-related control circuits.
Key Benefits
- One-pedal control with safety lever for secure, hands-free operation.
- Robust aluminium-zinc alloy housing for industrial durability.
- 1NO+1NC snap-action contacts for fast, reliable switching.
- Rated Ith 10 A; suitable for common control circuits.
- 4 kV impulse withstand enhances insulation and surge resilience.
- Operates from -25 to +70 °C for broad ambient conditions.
- 1 x M20 cable entry simplifies wiring.
Technical Specification
- Product type designation: KR110
- Rated impulse withstand voltage Uimp: 4 kV
- Short-circuit protection fuse: 10 gG fuse
- Ith (IEC): 10 A
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KR110S11 foot switch with integrated safety lever
- Manufacturer datasheet (downloadable)
- Original packaging
Applications
- Foot-operated control for industrial machinery and equipment
- Assembly, production and test stations requiring hands-free actuation
- Control of conveyor, press or jig operations via 1NO+1NC contacts
- Temporary or auxiliary control in maintenance and setup tasks
Frequently Asked Questions
What is the contact configuration of the KR110S11?
It has 1NO+1NC snap-action contacts for quick, reliable switching.
What cable entry does this foot switch provide?
The unit features a single M20 cable entry for wiring.
What is the rated thermal current (Ith)?
Ith is 10 A in accordance with IEC.
Which standards does the KR110S11 conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447.
What operating temperature range is supported?
It operates from -25 to +70 °C; storage is -40 to +70 °C.
Safety note: Install and wire by competent personnel per IEC/EN 60204-1 and local regulations. Protect the circuit with a 10 gG fuse, observe 10 A Ith and -25 to +70 °C limits, and note the device is rated for Pollution Degree 3.
| Manufacturer Part Number | KR110S11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975126035 |
