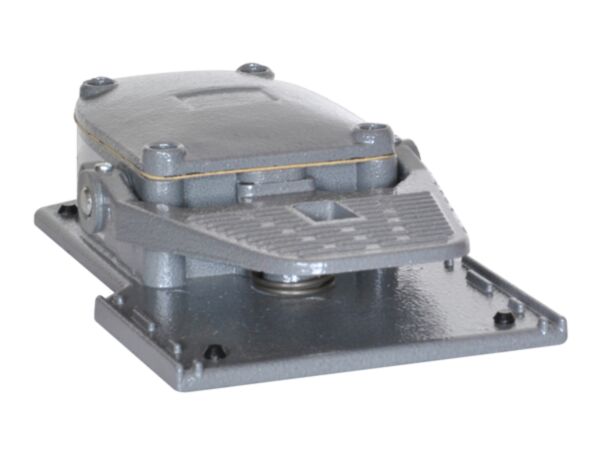

KR100L11 - 1-PEDAL METAL FOOT SWITCH 1NO+ 1NC SLOW
MPN: KR100L11
Special Price
£111.41
£92.84
Regular Price
£185.68
Why Choose the KR100L11?
The Lovato KR100L11 foot switch from the K series delivers dependable control in industrial environments. This one-pedal, free-actuation, open design features a robust aluminium-zinc alloy body and 1NO+1NC slow-action contacts for reliable signalling. A single M20 cable entry streamlines wiring, while the compact metal construction suits installations where durable, hands-free operation and clear pedal access are essential.
Engineered to the KR100 platform with 10 A Ith and 4 kV impulse withstand, the KR100L11 maintains performance from -25 to +70 °C (storage -40 to +70 °C). Rated Pollution Degree 3 and aligned with IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447, it supports 10 gG fuse short-circuit protection for safety and reliability.
Key Benefits
- One-pedal, free actuation for simple, hands-free machine control.
- Rugged aluminium-zinc alloy housing for long-lasting industrial durability.
- 1NO+1NC slow-action contacts ensure dependable switching feedback.
- Open design allows unobstructed pedal access during operation.
- Single M20 cable entry simplifies cable gland selection and installation.
- Rated 10 A Ith and 4 kV Uimp for robust performance.
- Wide operating range -25 to +70 °C for varied environments.
- Conforms to IEC/EN standards for compatibility and safety assurance.
Technical Specification
- Product type designation: KR100
- Rated impulse withstand voltage Uimp: 4 kV
- Short-circuit protection fuse: 10 gG fuse
- Ith (IEC): 10 A
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KR100L11 foot switch unit
- Product datasheet (downloadable from manufacturer)
- Protective packaging for transit
Applications
- Hands-free control of industrial machinery and equipment
- Automation and control panels requiring foot-operated input
- Production and assembly areas needing reliable foot actuation
- Test benches and workshop stations
- Maintenance and service environments
Frequently Asked Questions
What is the contact configuration of the KR100L11?
It has 1NO+1NC slow-action contacts for reliable signalling.
What cable entry does the foot switch provide?
It features a single M20 cable entry for wiring.
What is the operating temperature range?
The operating range is -25 to +70 °C; storage is -40 to +70 °C.
Does this model include a protective cover or guard?
No. It is an open, free-actuation design without a protective cover.
Which standards does the KR100L11 comply with?
It aligns with IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447.
Safety note: Install and operate in accordance with IEC/EN standards, use appropriate 10 gG short-circuit protection, and ensure wiring via the M20 entry is performed by qualified personnel within the specified temperature range.
| Manufacturer Part Number | KR100L11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975126028 |
