KGD004 - 2-PEDAL PLASTIC FOOT SWITCH 1N A+1NC FRE
MPN: KGD004
Special Price
£196.72
£163.93
Regular Price
£327.86
Why Choose the KGD004?

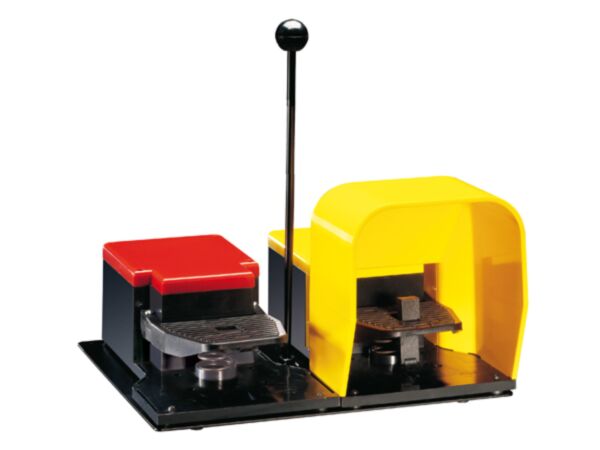

Engineered for dependable machine control, the Lovato KGD004 two‑pedal foot switch combines practical ergonomics with built‑in safety. The left pedal offers free actuation, while the right pedal features a safety lever and protective cover for controlled operation. Robust 2NO+2NC snap‑action contacts ensure positive switching, and the polymer thermoplastic housing withstands demanding use. A single M20 cable entry simplifies wiring, making the KGD004 a reliable choice for industrial control stations.
Designed for compliance and longevity, this foot switch meets IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447. Rated Ith 10 A with 6 kV impulse withstand, it delivers robust performance in control circuits. A wide -25 to +70 °C operating range and Pollution Degree 3 suitability support use in typical industrial environments. Simple installation and clear pedal differentiation help minimise operator error and enhance safe, hands‑free operation.
Key Benefits
- Dual-pedal layout with left free actuation for flexible control.
- Right pedal safety lever and cover for guarded operation.
- 2NO+2NC snap-action contacts for reliable, positive switching.
- Durable polymer thermoplastic housing resists industrial wear.
- Single M20 cable entry simplifies routing and installation.
- 6 kV impulse withstand improves surge resilience in control circuits.
- 10 A Ith rating supports robust control loads.
- Compliant with IEC/EN 60947, 60204-1 and EN 60447 standards.
Technical Specification
- Product type designation: KGD004
- Rated impulse withstand voltage Uimp: 6 kV
- Short-circuit protection fuse: 10 gG fuse
- Ith (IEC): 10 A
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KGD004 two-pedal foot switch unit
- Right pedal safety lever and protective cover
- 1 x M20 cable entry port
- Product datasheet (downloadable)
Applications
- Hands-free machine control in IEC/EN 60204-1 compliant environments
- Start/stop or mode selection on industrial equipment
- Operator stations requiring a safety-lever-guarded pedal
- Control circuits using 2NO+2NC snap-action contacts
- Facilities with Pollution Degree 3 industrial conditions
Frequently Asked Questions
What is the contact configuration of the Lovato KGD004 foot switch?
It features 2NO+2NC snap-action contacts for reliable switching.
What cable entry does the KGD004 provide?
It has a single 1 x M20 cable entry for wiring.
What is the operating temperature range?
The specified operating range is -25 to +70 °C.
Which standards does this foot switch comply with?
It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447.
What short-circuit protection should be used?
A 10 gG fuse is indicated for short-circuit protection.
Safety note: Install and maintain in accordance with IEC/EN standards; use the specified 10 gG fuse, and operate within -25 to +70 °C and Pollution Degree 3 conditions. Isolate power before wiring or service.
| Manufacturer Part Number | KGD004 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975126189 |
