KGD003 - 2-PEDAL PLASTIC FOOT SWITCH 1N A+1NC FRE

Why Choose the KGD003?

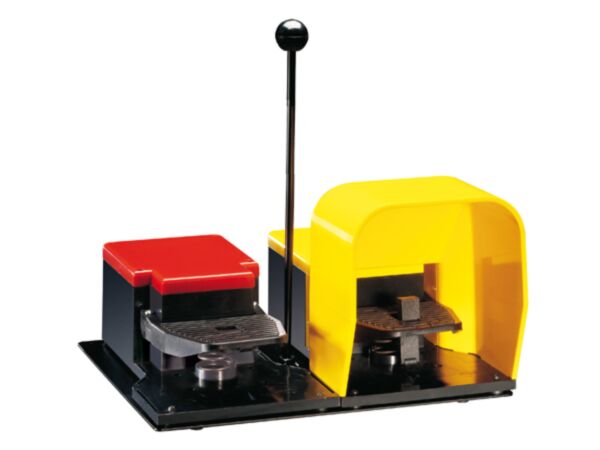

Designed for dependable machine control, the Lovato KGD003 two-pedal foot switch delivers precise actuation with robust safety features. The left pedal offers free actuation, while the right pedal includes a safety lever and protective cover for controlled operation. A polymer thermoplastic housing, 1NO+1NC snap-action contacts, and a single M20 cable entry make integration straightforward on production lines and operator floor stations.

Rated Ith 10 A with 6 kV impulse withstand (Uimp) and requiring a 10 gG fuse for short-circuit protection, this foot switch suits demanding environments. Operating from -25 to +70 °C (storage -40 to +70 °C) and designed for Pollution Degree 3, it conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447 for safe, compliant installations.

Key Benefits

• Two-pedal design with right pedal safety lever and cover.
• Left pedal provides free actuation for unguarded control tasks.
• Durable polymer thermoplastic housing for demanding industrial use.
• 1NO+1NC snap-action contacts enable reliable switching integration.
• Simple wiring through single M20 cable entry for easy installation.
• Rated 6 kV Uimp and 10 A Ith for robustness.
• Operates from -25 to +70 °C; storage -40 to +70 °C.
• Conforms to IEC/EN 60947, 60947-5-1, 60204-1 and EN 60447.

Technical Specification

• Product type designation: KGD003
• Rated impulse withstand voltage Uimp: 6 kV
• Short-circuit protection fuse: 10 gG fuse
• Ith (IEC): 10 A
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +70 °C
• Pollution degree: 3

What’s Included

• Lovato KGD003 two-pedal foot switch assembly
• Integrated right-pedal safety lever and protective cover
• 1 x M20 cable entry port on housing
• Manufacturer datasheet (downloadable)

Applications

• Industrial machinery start/stop and function selection by foot
• Hands-free operator control where guarded actuation is required
• Two-function control stations with differentiated pedal actions
• Workshops and factory environments within Pollution Degree 3

Safety note: Install and commission only by competent personnel. Fit appropriate short-circuit protection (10 gG fuse) and ensure guarding and compliance with IEC/EN standards and local regulations before use.
