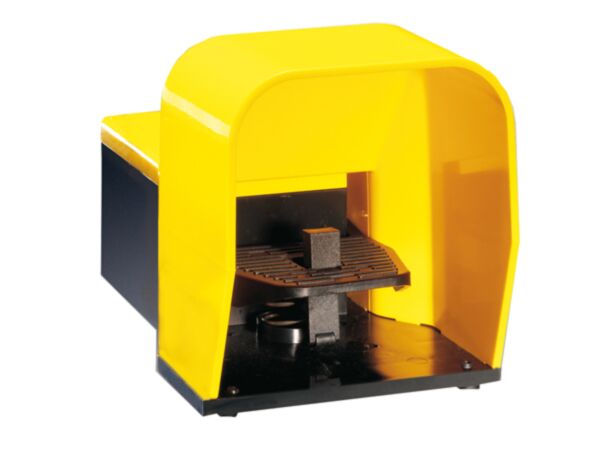

KG220S11 - 1-PEDAL PLASTIC FOOT SWITCH 1N O+1NC SNA
MPN: KG220S11
Special Price
£82.52
£68.77
Regular Price
£137.54
Why Choose the KG220S11?
Designed for dependable foot-operated control, the Lovato KG220S11 foot switch delivers precise actuation in industrial environments. This K series unit features a single pedal with 1NO+1NC snap-action contacts for straightforward control logic and clear switching feedback. A robust polymer thermoplastic body provides durability with reduced weight, making installation and operation easier. The SKU KG220S11 supports efficient ergonomics where hands-free operation improves productivity and safety.
Engineered for resilience, it offers a 1 x M20 cable entry and is rated Ith 10 A with 6 kV impulse withstand capability. Operating from -25 to +70 °C (storage -40 to +70 °C) and Pollution Degree 3, it complies with IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447. Use with a 10 gG fuse for short-circuit protection to maintain performance and safety.
Key Benefits
- Single-pedal design enables intuitive, hands-free machine control
- 1NO+1NC snap-action contacts simplify basic control circuits
- Polymer thermoplastic housing offers durable, lightweight construction
- Rated Ith 10 A for versatile control applications
- 6 kV impulse withstand enhances electrical robustness
- Operates from -25 to +70 °C for harsh environments
- 1 x M20 cable entry streamlines wiring and termination
Technical Specification
- Product type designation: KG220
- Rated impulse withstand voltage Uimp: 6 kV
- Short-circuit protection fuse: 10 gG fuse
- Ith (IEC): 10 A
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KG220S11 foot switch unit
- Factory-fitted 1NO+1NC snap-action contacts
- Downloadable product datasheet
Applications
- Foot-operated start/stop control on industrial machinery
- Assembly and production line stations
- Test benches and workshop equipment
- Packaging and material handling systems
- Maintenance and service operations requiring hands-free actuation
Frequently Asked Questions
What is the contact configuration of the KG220S11?
It features 1NO+1NC snap-action contacts for reliable switching.
What cable entry does this foot switch provide?
It includes a 1 x M20 cable entry for straightforward wiring.
What are the main electrical ratings?
The switch has Ith 10 A and a 6 kV rated impulse withstand voltage.
What temperature range can it operate in?
Operating temperature is -25 to +70 °C; storage is -40 to +70 °C.
Which standards does the product comply with?
It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447.
Safety note: Install and commission by qualified personnel only. De-energise before wiring, use a 10 gG fuse for short-circuit protection, and follow applicable IEC/EN standards and site risk assessments.
| Manufacturer Part Number | KG220S11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975125991 |
