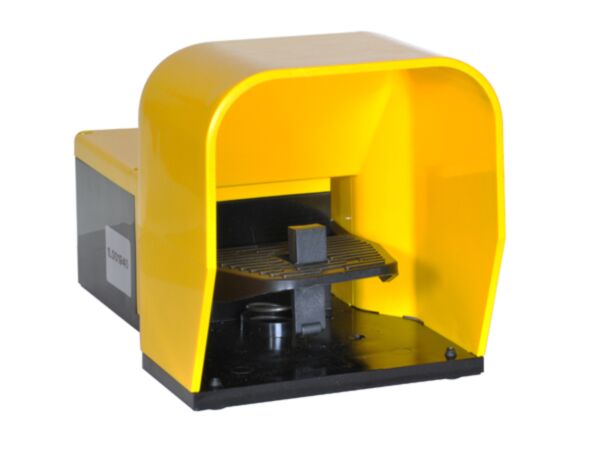

KG210S22 - 1-PEDAL PLASTIC FOOT SWITCH 2N O+2NC SNA
MPN: KG210S22
Special Price
£92.27
£76.89
Regular Price
£153.78
Why Choose the KG210S22?
Designed for dependable foot control in industrial panels, the Lovato KG210S22 Foot Switch combines one-pedal operation with a safety lever and protective cover. Its robust polymer thermoplastic body and 2NO+2NC snap action contacts deliver precise actuation. With a single M20 cable entry and K series construction, this KG210 designation unit fits neatly into engineered installations.
Rated for Ith 10 A and Uimp 6 kV, the KG210S22 supports secure control circuits when protected by a 10 gG fuse. Operating from -25 to +70 °C (storage -40 to +70 °C) and suitable for pollution degree 3 environments, it meets IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447 for assured conformity.
Key Benefits
- One pedal with safety lever and cover for guarded, hands-free actuation.
- Polymer thermoplastic housing for strength and electrical insulation.
- 2NO+2NC snap action contacts deliver fast, reliable switching.
- Single M20 cable entry simplifies panel wiring.
- Rated impulse withstand voltage Uimp 6 kV for resilience.
- Ith 10 A for dependable current carrying in control circuits.
- Operates -25 to +70 °C; storage -40 to +70 °C.
- Conforms to IEC/EN 60947 and EN 60447 for compliance.
Technical Specification
- Product type designation: KG210
- Rated impulse withstand voltage Uimp: 6 kV
- Short-circuit protection fuse: 10 gG fuse
- Ith (IEC): 10 A
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Foot switch unit KG210S22 with integrated safety lever and cover
- Pre-fitted 2NO+2NC snap action contact block
- Manufacturer datasheet (download via product page)
Applications
- Hands-free machine control where a safety lever is required
- Industrial control circuits needing 2NO+2NC snap action switching
- Operator foot actuation in panels with M20 cable entry provisions
- Environments aligned with IEC/EN 60947 and 60204-1 compliance needs
Frequently Asked Questions
What is the contact configuration of the Lovato KG210S22?
It provides 2NO+2NC snap action contacts for rapid, reliable switching.
What temperatures can this foot switch operate within?
Operating temperature is -25 to +70 °C; storage is -40 to +70 °C.
What cable entry does the KG210S22 provide?
It features 1 x M20 cable entry for straightforward wiring.
What electrical ratings should I note for circuit design?
Ith is 10 A and rated impulse withstand voltage Uimp is 6 kV.
Which standards and protection apply to this model?
It conforms to IEC/EN 60947-1, 60947-5-1, IEC/EN 60204-1 and EN 60447, and should be protected by a 10 gG fuse.
Safety note: Install and wire by competent personnel in accordance with IEC/EN 60204-1 and the stated ratings. Provide 10 gG short-circuit protection and operate within -25 to +70 °C in pollution degree 3 environments.
| Manufacturer Part Number | KG210S22 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975125977 |
