KG210L11 - 1-PEDAL PLASTIC FOOT SWITCH 1N O+1NC SLO
MPN: KG210L11
Special Price
£73.25
£61.04
Regular Price
£122.08
Why Choose the KG210L11?

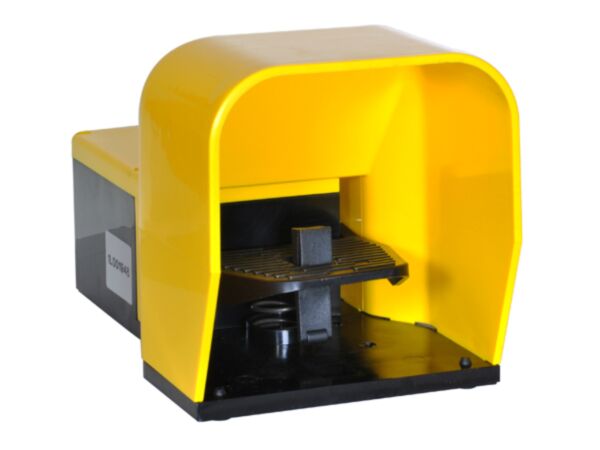

The Lovato KG210L11 foot switch delivers reliable, hands‑free control in industrial environments. This K series unit features one pedal with a safety lever and protective cover, housed in a durable polymer thermoplastic body. Fitted with 1NO+1NC slow action contacts for precise switching and a 1 x M20 cable entry, the KG210L11 combines safety and practicality for machine start/stop and other operator functions.
Engineered for demanding duty, the KG210 platform provides a 10 A Ith rating and 6 kV rated impulse withstand voltage, with short‑circuit protection by 10 gG fuse. It operates reliably from −25 to +70 °C and suits Pollution degree 3 environments. Conforming to IEC/EN 60947‑1, IEC/EN 60947‑5‑1, IEC/EN 60204‑1 and EN 60447, this foot switch offers dependable compliance and performance in compact, robust construction.
Key Benefits
- One pedal with safety lever and protective cover enhances operator safety.
- Durable polymer thermoplastic housing for robust, long‑life service.
- 1NO+1NC slow action contacts provide precise, dependable switching control.
- Rated impulse withstand 6 kV for increased electrical resilience.
- 10 A Ith rating suits common control circuits and loads.
- Operates from −25 to +70 °C for wide ambient conditions.
- 1 x M20 cable entry simplifies installation and wiring.
- Conforms to IEC/EN 60947 and 60204 standards for control gear.
Technical Specification
- Product type designation: KG210
- Rated impulse withstand voltage Uimp: 6 kV
- Short-circuit protection fuse: 10 gG fuse
- Ith (IEC): 10 A
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KG210L11 foot switch unit
- Integrated pedal with safety lever and protective cover
- Factory-fitted 1NO+1NC slow action contact block
- Enclosure with 1 x M20 cable entry
Applications
- Hands-free machine start/stop and control functions
- Assembly, packaging and processing equipment stations
- Industrial workstations needing guarded foot-operated inputs
- Environments requiring IEC/EN compliant control devices
Frequently Asked Questions
What contacts are fitted to the KG210L11?
It is fitted with 1NO+1NC slow action contacts for precise switching.
What is the housing material?
The housing is polymer thermoplastic for a robust, lightweight enclosure.
What is the current and impulse withstand rating?
Ith is 10 A and rated impulse withstand voltage Uimp is 6 kV.
What cable entry does it have?
The enclosure provides 1 x M20 cable entry for wiring.
Which standards does this foot switch conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447.
Safety note: Install and wire by a competent person, using the specified 10 gG short-circuit protection and observing IEC/EN requirements. Operate within the stated temperatures and ensure guarding is in place.
| Manufacturer Part Number | KG210L11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975125960 |
