KG200S11 - 1-PEDAL PLASTIC FOOT SWITCH 1N O+1NC SNA
MPN: KG200S11
Special Price
£74.59
£62.16
Regular Price
£124.32
Why Choose the KG200S11?

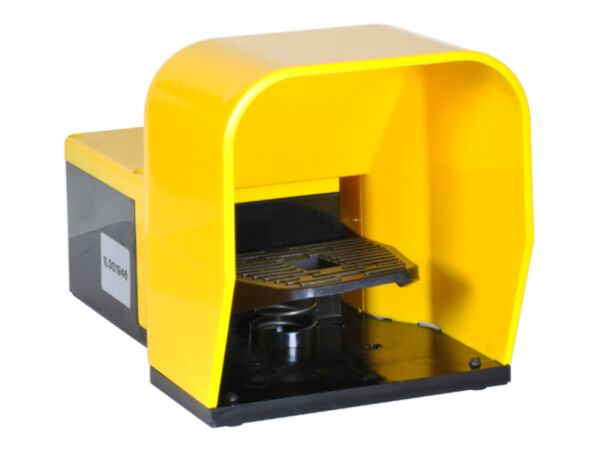

Optimise hands‑free control with the Lovato KG200S11 foot switch from the K series. This single‑pedal unit features free actuation with a protective cover and a robust polymer thermoplastic housing. A 1NO+1NC snap‑action contact arrangement provides versatile control logic, while the 1 x M20 cable entry streamlines installation. Designed for dependable performance in industrial environments, it’s a practical choice for operator stations and machinery control tasks.
Built to international standards, the KG200 series designation ensures confidence in demanding sites. Rated Ith 10 A with 6 kV impulse withstand, the switch suits control circuits with robust electrical endurance. It operates reliably from -25 to +70 °C and stores from -40 to +70 °C, with Pollution Degree 3 suitability. Conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447, supporting safe integration and maintenance.
Key Benefits
- Covered single pedal with free actuation for controlled, hands-free operation.
- 1NO+1NC snap-action contacts offer flexible wiring for control circuits.
- Durable polymer thermoplastic housing suited to industrial environments.
- M20 cable entry simplifies installation and routing.
- Rated Ith 10 A with 6 kV impulse withstand capability.
- Wide operating temperature range from -25 to +70 °C.
- Conforms to IEC/EN standards for reliable integration and compliance.
Technical Specification
- Product type designation: KG200
- Rated impulse withstand voltage Uimp: 6 kV
- Short-circuit protection fuse: 10 gG fuse
- Ith (IEC): 10 A
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KG200S11 foot switch, covered single pedal
- Integrated 1NO+1NC snap-action contact block
- 1 x M20 cable entry point on housing
- Product documentation
Applications
- Machinery and equipment control at operator workstations
- Production, packaging and assembly line foot-actuated functions
- Hands-free start/stop control in industrial automation
- Pedal actuation for tools and process control stations
Frequently Asked Questions
Does the KG200S11 include a protective cover?
Yes. The product characteristics specify a single pedal with cover.
What contact configuration does this foot switch provide?
It features 1NO+1NC snap-action contacts for versatile control logic.
What is the current rating of the contacts?
The thermal current Ith is 10 A according to IEC.
What operating temperature range is supported?
It operates from -25 to +70 °C and stores from -40 to +70 °C.
Which standards does the product conform to?
IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447.
Safety note: Installation and wiring must be performed by qualified personnel. Protect the circuit with a 10 gG fuse and operate within the specified ratings and environmental limits in accordance with applicable IEC/EN standards.
| Manufacturer Part Number | KG200S11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975125939 |
