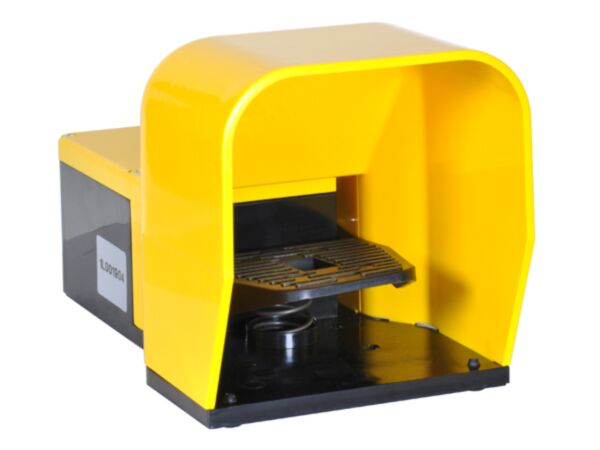

KG200L11 - 1-PEDAL PLASTIC FOOT SWITCH 1N O+1NC SLO
MPN: KG200L11
Special Price
£73.76
£61.47
Regular Price
£122.94
Why Choose the KG200L11?
The Lovato KG200L11 foot switch from the K series provides reliable, hands‑free control in industrial environments. This one‑pedal device features free actuation and a protective cover, combining convenience with operator shielding. Its robust polymer thermoplastic body and 1NO+1NC slow action contacts deliver dependable switching, while the single 1 x M20 cable entry simplifies wiring for panel builders and OEMs.
Built for demanding control circuits, the KG200L11 offers a 10 A Ith (IEC) and a 6 kV rated impulse withstand voltage, aligning with IEC/EN 60947 performance. It operates reliably from -25 to +70 °C and suits Pollution Degree 3 environments. Conformance to IEC/EN 60947-1, 60947-5-1, IEC/EN 60204-1 and EN 60447 supports assured integration across automation panels and machinery.
Key Benefits
- One pedal with free actuation for simple, hands-free machine control.
- Protective cover enhances operator shielding during foot operation.
- Polymer thermoplastic housing is robust and lightweight for industrial use.
- 1NO+1NC slow action contacts provide flexible control circuit integration.
- Single 1 x M20 cable entry speeds straightforward wiring.
- 10 A Ith and 6 kV Uimp support reliable switching performance.
- Wide -25 to +70 °C range suits varied industrial environments.
Technical Specification
- Product type designation: KG200
- Rated impulse withstand voltage Uimp: 6 kV
- Short-circuit protection fuse: 10 gG fuse
- Ith (IEC): 10 A
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KG200L11 foot switch (with cover)
- Integrated 1NO+1NC slow action contact block
- M20 cable entry port within housing
- Protective packaging
Applications
- Machine and equipment control in industrial automation
- Assembly lines and production workstations
- Maintenance and test benches requiring foot-operated switching
- General purpose control circuits with 1NO+1NC requirements
Frequently Asked Questions
What contact configuration does the KG200L11 provide?
It features 1NO+1NC slow action contacts for versatile control circuits.
What cable entry size is available?
The unit provides a single 1 x M20 cable entry.
What is the operating temperature range?
It operates from -25 to +70 °C; storage is -40 to +70 °C.
Does it include a protective cover?
Yes, it is supplied with a cover as part of the K series design.
Which standards does it conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447.
Safety note: Install and wire the foot switch by a competent person, protect the circuit with a 10 gG fuse, and operate within the stated electrical ratings and temperature range in accordance with applicable IEC/EN standards.
| Manufacturer Part Number | KG200L11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975125946 |
