KG120S11 - 1-PEDAL PLASTIC FOOT SWITCH 1N O+1NC SNA
MPN: KG120S11
Special Price
£66.48
£55.40
Regular Price
£110.80
Why Choose the KG120S11?

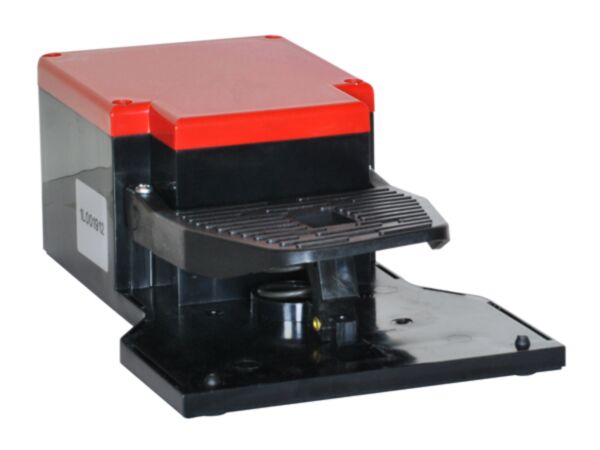

Designed for reliable machine actuation, the Lovato KG120S11 foot switch from the K series delivers precise control in a compact, durable format. This single‑pedal unit features 1NO+1NC snap‑action contacts for swift switching and a robust polymer thermoplastic body. A convenient 1 x M20 cable entry simplifies wiring, making the KG120S11 ideal for industrial control tasks where hands‑free operation and consistent performance are essential.
Built on the KG120 designation, this foot switch withstands demanding environments with a rated impulse voltage of 6 kV and Ith (IEC) 10 A. It operates from -25 to +70 °C and suits Pollution Degree 3 installations. Conformity to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447 supports integration into compliant machinery across UK industry while maintaining robust, repeatable actuation.
Key Benefits
- Single-pedal control for clear, hands-free machine operation.
- 1NO+1NC snap-action contacts deliver fast, reliable switching.
- Polymer thermoplastic housing offers durable, lightweight protection.
- M20 cable entry enables straightforward, tidy wiring.
- Rated impulse withstand voltage 6 kV enhances insulation robustness.
- Ith 10 A supports common industrial control loads.
- Operates from -25 to +70 °C for broad ambient conditions.
Technical Specification
- Product type designation: KG120
- Rated impulse withstand voltage Uimp: 6 kV
- Short-circuit protection fuse: 10 gG fuse
- Ith (IEC): 10 A
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KG120S11 foot switch assembly
- Integrated single pedal with actuator lock
- Preformed 1 x M20 cable entry
- Basic product information and compliance details
Applications
- Hands-free actuation for machinery and production equipment
- Operator control for conveyors, packaging and assembly stations
- Foot-operated input for OEM machinery and automation systems
- Maintenance and test environments requiring temporary foot control
Frequently Asked Questions
What contact configuration does the KG120S11 provide?
It features 1NO+1NC snap-action contacts for fast, reliable switching.
What cable entry size is provided?
It includes a single M20 cable entry for straightforward wiring.
What is the operating temperature range?
The unit operates from -25 to +70 °C, with storage down to -40 °C.
Which fuse should be used for short-circuit protection?
Use a 10 gG fuse as the specified short-circuit protection.
Does it meet relevant standards for industrial control gear?
Yes, it conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447.
Safety note: Install and commission by a competent person. Isolate power before wiring, fit the specified 10 gG fuse, and ensure compliance with IEC/EN standards and local regulations.
| Manufacturer Part Number | KG120S11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975125915 |
