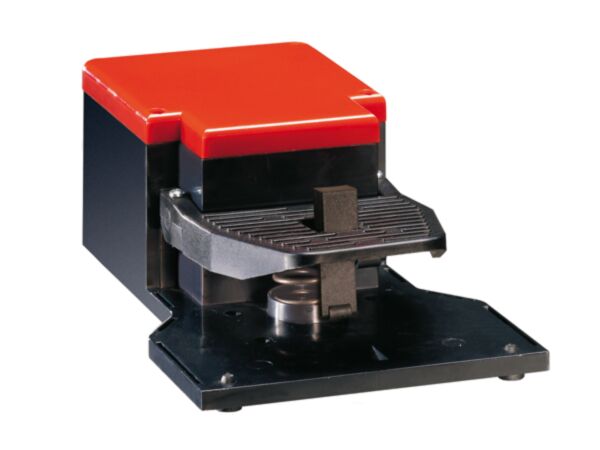

KG110L11 - 1-PEDAL PLASTIC FOOT SWITCH 1N O+1NC SLO
MPN: KG110L11
Special Price
£65.42
£54.52
Regular Price
£109.04
Why Choose the KG110L11?
The Lovato KG110L11 foot switch from the K series provides reliable foot-operated control with one pedal and a safety lever in an open configuration. Its polymer thermoplastic housing and 1NO+1NC slow action contacts support straightforward integration into control circuits. This KG110 variant suits applications requiring hands-free switching and a defined safety lever action, helping operators trigger equipment without using hand-operated controls.
Installation is simplified with a 1 x M20 cable entry, while electrical ratings include Ith 10 A and a 6 kV rated impulse withstand voltage. Protection with a 10 gG fuse is specified. The device operates from -25 to +70 °C (storage -40 to +70 °C), Pollution Degree 3, and conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447 standards.
Key Benefits
- One pedal with safety lever for clear, foot-operated switching.
- 1NO+1NC slow action contacts suit basic control circuit needs.
- Polymer thermoplastic housing for non-metallic construction.
- 1 x M20 cable entry for straightforward wiring.
- Rated impulse withstand voltage Uimp of 6 kV.
- Ith (IEC) 10 A capability suits common control loads.
- Operates from -25 to +70 °C; Pollution Degree 3.
- Conforms to IEC/EN 60947-1, -5-1, 60204-1 and EN 60447.
Technical Specification
- Product type designation: KG110
- Rated impulse withstand voltage Uimp: 6 kV
- Short-circuit protection fuse: 10 gG fuse
- Ith (IEC): 10 A
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KG110L11 foot switch unit
- Safety lever pre-fitted on one pedal (open configuration)
- 1 x M20 cable entry provision
- Manufacturer documentation (datasheet)
Applications
- Foot-operated control for industrial machinery per IEC/EN 60204-1
- Control circuits requiring 1NO+1NC slow action contacts
- Operator stations needing a safety lever on the pedal
- Installations using M20 cable glands and 10 A Ith circuits
- Environments within -25 to +70 °C, Pollution Degree 3
Frequently Asked Questions
What is the contact configuration of the Lovato KG110L11 foot switch?
It has 1NO+1NC slow action contacts.
What cable entry does the KG110L11 provide?
It features 1 x M20 cable entry.
What are the operating and storage temperature ranges?
Operating is -25 to +70 °C; storage is -40 to +70 °C.
Which standards does this foot switch conform to?
IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447.
What short-circuit protection should be used?
Use a 10 gG fuse as specified.
Safety note: Install and operate the KG110L11 in line with the cited IEC/EN standards, protect with a 10 gG fuse, and use only within the stated temperature and Pollution Degree 3 limits.
| Manufacturer Part Number | KG110L11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975125908 |
