KG100L11 - 1-PEDAL PLASTIC FOOT SWITCH 1N O+1NC SLO
MPN: KG100L11
Special Price
£62.54
£52.12
Regular Price
£104.24
Why Choose the KG100L11?

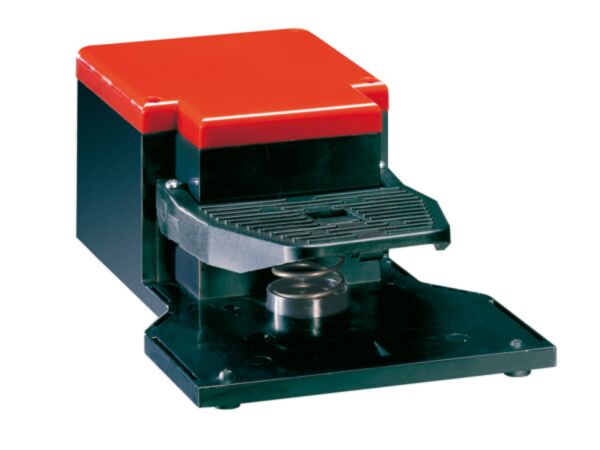

The Lovato KG100L11 foot switch from the K series delivers dependable hands-free control in industrial environments. This one-pedal, free-actuation model features an open design and polymer thermoplastic housing for robust performance. With 1NO+1NC slow-action contacts and a single M20 cable entry, the KG100L11 supports straightforward wiring and reliable signalling for machine control and automation tasks.
Engineered to the KG100 designation, it offers 10 A Ith and 6 kV Uimp for resilient operation, with an operating temperature range of -25 to +70 °C and pollution degree 3. It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447, and references a 10 gG fuse for short-circuit protection.
Key Benefits
- One pedal, free actuation for simple, hands-free machine control.
- Polymer thermoplastic housing provides robust, lightweight durability in demanding settings.
- 1NO+1NC slow-action contacts ensure reliable signalling and control circuits.
- Single M20 cable entry allows straightforward, tidy installation and wiring.
- Ith 10 A and Uimp 6 kV support resilient operation.
- Wide operating range of -25 to +70 °C suits varied environments.
- Conforms to IEC/EN 60947 and 60204-1 for assured compliance.
Technical Specification
- Product type designation: KG100
- Rated impulse withstand voltage Uimp: 6 kV
- Short-circuit protection fuse: 10 gG fuse
- Ith (IEC): 10 A
- Operating temperature: -25 to +70 °C
- Storage temperature: -40 to +70 °C
- Pollution degree: 3
What’s Included
- Lovato KG100L11 foot switch unit (K series, open design)
- Product documentation
Applications
- Industrial machinery foot-operated control tasks
- Automation panels requiring hands-free operator input
- Start/stop or mode selection signalling
- General-purpose control circuits within compliant systems
Frequently Asked Questions
What is the contact configuration of the Lovato KG100L11?
It has 1NO+1NC slow-action contacts.
What cable entry does this foot switch provide?
It features 1 x M20 cable entry.
What are the key electrical ratings?
Ith (IEC) is 10 A and the rated impulse withstand voltage Uimp is 6 kV.
What temperatures can it operate and be stored at?
Operating range is -25 to +70 °C; storage is -40 to +70 °C.
Which standards does the KG100L11 conform to?
IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1 and EN 60447.
Safety note: Installation and wiring should be performed by competent personnel. Isolate power before work, follow applicable IEC/EN standards, and use short-circuit protection as specified (10 gG fuse).
| Manufacturer Part Number | KG100L11 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975125885 |
