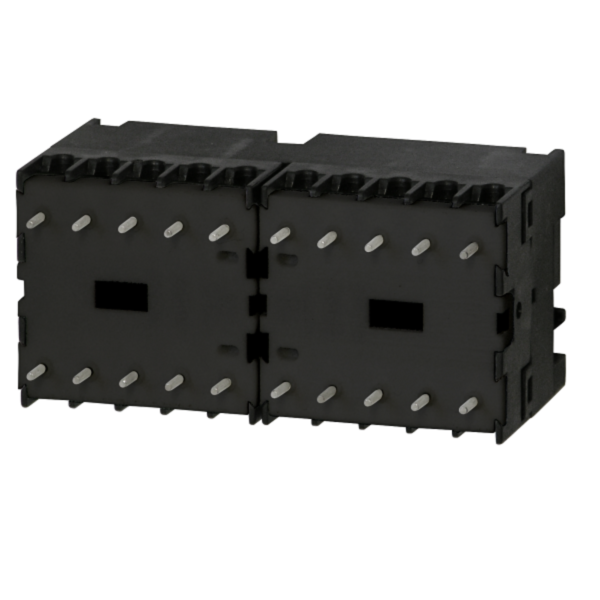

imo ma05-p-10230ac micro contactor 3 pole 2.2kw 5a ac3, 12a ac1 1no aux, 230vac coil

Why Choose the IMO MA05-P-10230AC PCB Mount Micro Contactor?

The IMO MA05-P-10230AC is a compact and highly reliable PCB mount micro contactor designed for industrial automation, OEM equipment and printed circuit board motor control applications where dependable switching and reduced installation space are essential. As part of the proven IMO MA Series, this miniature contactor delivers industrial-grade performance in a compact solder-pin format suitable for direct PCB integration.

Featuring a 3-pole open contact configuration, 1 NO auxiliary contact and a 230 V AC operating coil, the MA05-P-10230AC is engineered for efficient switching of motors and industrial loads in compact automation systems. Its PCB mount design simplifies assembly processes while providing reliable electrical endurance and robust operational stability.

The IMO MA Series is widely trusted by machine builders, OEM manufacturers and industrial automation engineers seeking compact motor control solutions for electronic control systems and machinery. The unit supports industrial motor switching applications up to 2.2 kW AC3 while maintaining minimal footprint requirements.

Key Advantages

• Compact PCB mount micro contactor for industrial automation systems.
• 3-pole open contact arrangement with 1 NO auxiliary contact.
• 230 V AC operating coil suitable for industrial control circuits.
• Designed for direct printed circuit board mounting.
• Reliable motor switching up to 2.2 kW AC3.
• Compact footprint for OEM and machinery applications.
• Industrial-grade durability and dependable switching performance.

Key Features

• IMO MA Series PCB mount micro contactor.
• 3-pole open main contacts.
• 1 NO auxiliary contact.
• 220–240 V AC coil voltage.
• 2.2 kW AC3 motor switching capability.
• 5 A AC3 current rating.
• 12 A AC1 current rating.
• PCB solder pin mounting design.

Technical Specifications

• Manufacturer: IMO Precision Controls
• Series: MA Series
• Model: MA05-P-10230AC
• Product type: PCB mount micro contactor
• Main contact configuration: 3-pole open
• Auxiliary contacts: 1 NO
• Motor rating (AC3): 2.2 kW
• AC3 current rating: 5 A
• AC1 current rating: 12 A
• Control coil voltage: 220–240 V AC, 50/60 Hz
• Mounting type: PCB mount with solder pins Ø1.15 mm
• Contact material: Silver alloy contacts
• Protection standard: IEC 60947-4-1 compliant
• Weight: approx. 0.07 kg

Compact PCB Motor Control for Industrial Equipment

PCB mount micro contactors such as the IMO MA05-P-10230AC are designed to provide dependable motor and load switching directly from printed circuit board assemblies. Their compact dimensions make them ideal for OEM equipment, automation electronics and compact machinery where conventional DIN rail contactors would occupy excessive space.

The MA Series combines industrial switching capability with PCB integration flexibility, enabling machine builders and automation engineers to develop compact motor control solutions with reliable long-term electrical performance.

Typical Applications

• PCB-based motor control systems.
• OEM machinery and automation equipment.
• Industrial electronic control systems.
• Compact machine building applications.
• Industrial automation and switching systems.
• Embedded motor control assemblies.

Trusted by OEM and Automation Engineers

IMO MA Series PCB mount micro contactors are trusted by industrial automation engineers and OEM manufacturers for compact motor control integration, reliable switching performance and dependable industrial operation.
