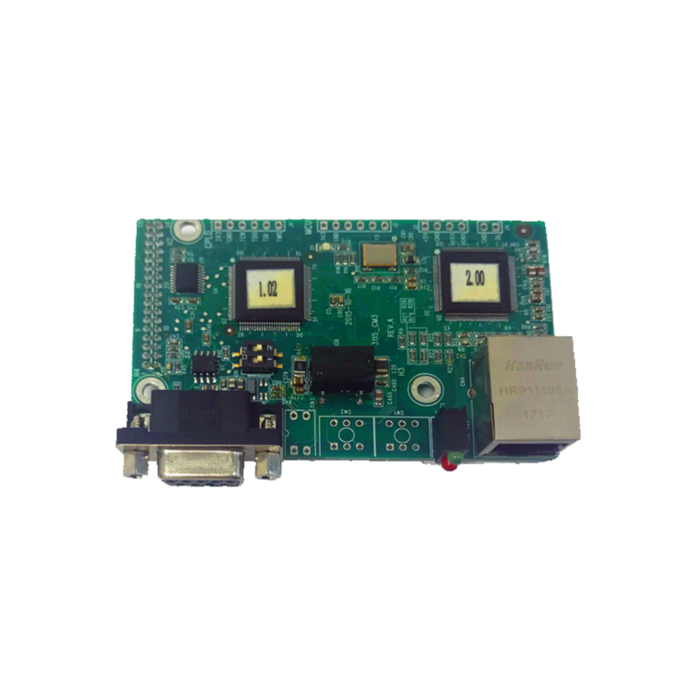

imo hd1-e-pdp hd1 comms option card profibus-dp protocol

Why Choose the IMO HD1-E-PDP Profibus-DP Communication Card?

The IMO HD1-E-PDP is a dedicated Profibus-DP communication option card designed specifically for the IMO HD1 series variable frequency drives. It enables seamless integration between HD1 inverters and industrial automation systems using the internationally recognised Profibus-DP fieldbus protocol.

Designed for machine builders, systems integrators and industrial automation engineers, the HD1-E-PDP provides reliable high-speed communication between PLCs, control systems and inverter drives. By adding Profibus connectivity, users can achieve improved monitoring, diagnostics and control across complex manufacturing and process automation applications.

The communication card supports integration into existing Profibus-DP networks, allowing centralised control of drive parameters, operating status and performance data. Its compact plug-in design ensures straightforward installation within compatible IMO HD1 inverter drives, helping reduce commissioning time while enhancing system flexibility.

Key Advantages

• Provides Profibus-DP communication capability for IMO HD1 drives.
• Enables seamless integration with PLCs and industrial automation systems.
• Supports centralised monitoring and control of inverter functions.
• Improves system diagnostics and operational visibility.
• Reduces wiring requirements compared with conventional hardwired control.
• Designed specifically for compatibility with the IMO HD1 inverter range.

Key Features

• Profibus-DP communication protocol.
• Compatible with IMO HD1 series variable speed drives.
• Supports industrial fieldbus networking.
• Reliable RS-485 based communication architecture.
• Designed for machine automation and process control applications.
• Fast cyclic data exchange between master and slave devices.
• Supports integration into multi-device Profibus networks.
• Compact plug-in option card design.

Technical Specifications

• Manufacturer: IMO Precision Controls
• Series: HD1 Communication Options
• Model: HD1-E-PDP
• Product type: Profibus-DP communication card
• Protocol: Profibus-DP
• Communication medium: RS-485 compliant network
• Application: Industrial drive communications
• Compatible drives: IMO HD1 series inverters
• Installation: Internal plug-in option module
• Network function: Drive monitoring, control and diagnostics
• Industrial network support: PLC and automation systems
• Mounting type: Integrated drive option card

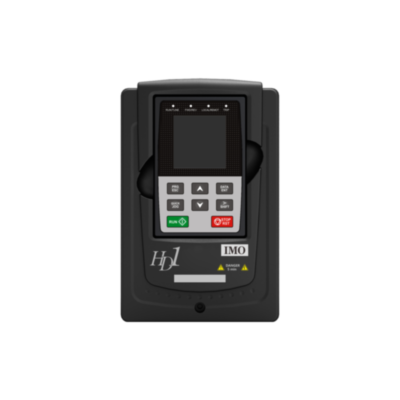

Industrial Communication for HD1 Drives

The HD1-E-PDP communication module extends the capabilities of IMO HD1 variable speed drives by providing direct connectivity to Profibus-DP automation networks. This enables efficient transfer of operating commands, status information and diagnostic data between control systems and drive equipment.

Profibus-DP remains one of the most widely used industrial communication standards in manufacturing, process control, material handling and machine automation. The HD1-E-PDP card allows HD1 drives to become fully integrated components within these intelligent control architectures.

Typical Applications

• Factory automation systems.
• PLC-controlled machinery.
• Material handling and conveyor systems.
• Packaging and processing equipment.
• Water and wastewater facilities.
• Industrial process control installations.
• OEM machinery and equipment manufacturing.
• Building automation and infrastructure projects.

Trusted by Automation Engineers Worldwide

The IMO HD1-E-PDP communication card helps integrate HD1 variable speed drives into Profibus-DP networks, providing reliable communication, enhanced diagnostics and streamlined industrial automation control.
