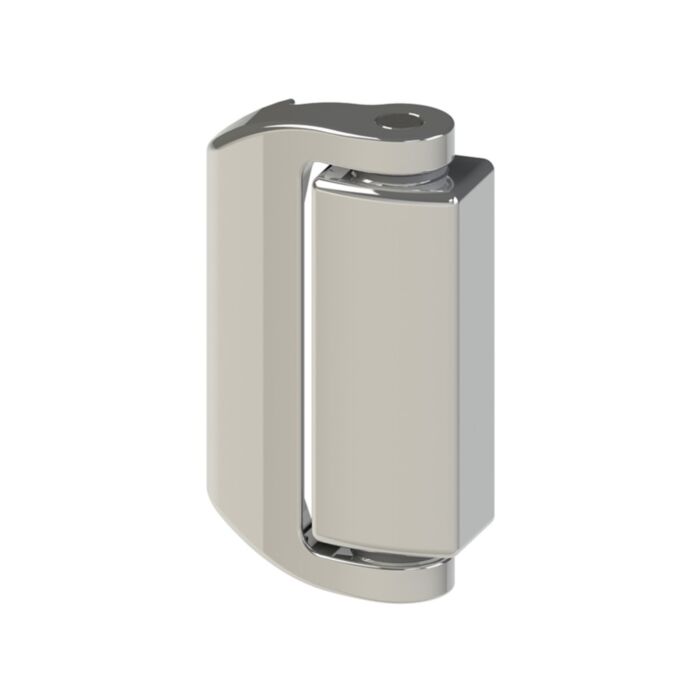

HX CD Pizzato Additional hinge in stainless steel HX series
MPN: HX CD
Alt. SKU: HXCD
Special Price
£301.31
£251.09
Regular Price
£354.48
HX CD Pizzato Additional hinge in stainless steel HX series is available to buy in increments of 1
Why Choose the Pizzato HXCD Additional Hinge?
The Pizzato HXCD is a robust stainless steel additional hinge designed for use with Pizzato HX series safety hinge switches. Unlike active safety hinges, this component provides purely mechanical support, helping to stabilise guard doors and ensure correct alignment in safety-critical installations.
Manufactured from AISI 316L stainless steel, the HXCD is built for demanding industrial environments where corrosion resistance, hygiene, and durability are essential. It is particularly suited to applications in food processing, pharmaceuticals, and chemical industries.
As part of the HX series accessory range, the HXCD allows installers to distribute the load of heavy or large guard doors across multiple hinges. This helps maintain accurate operation of the safety hinge switch and extends the overall service life of the installation.
Key Advantages
- Designed for HX series safety hinge systems.
- Additional mechanical hinge for load distribution.
- No electrical contacts, purely structural support.
- AISI 316L stainless steel construction for corrosion resistance.
- Improves alignment and stability of safety hinge installations.
- Ideal for hygienic and washdown environments.
Key Features
- Pizzato HX series accessory.
- Non-switching additional hinge.
- Material: AISI 316L stainless steel.
- Matching design for seamless integration with HX hinges.
- Right-hand movable hinge configuration.
- Hygienic stainless steel finish.
- Heavy-duty construction for industrial use.
Technical Specifications
- Manufacturer: Pizzato Elettrica
- Series: HX Series
- Model: HXCD
- Product type: Additional hinge (non-switching)
- Function: Mechanical support hinge
- Contact block: None
- Housing material: AISI 316L stainless steel
- Mounting: Integrated hinge mounting
- Orientation: Right-hand movable part
- Dimensions: approx. 126 × 76 × 31 mm
- Application: HX series safety hinge systems
Mechanical Support for Safety Hinge Systems
In installations using HX series safety hinges, additional hinges such as the HXCD are essential for supporting the mechanical load of guard doors. This prevents excessive stress on the safety hinge switch itself and ensures consistent switching performance over time.
By distributing forces across multiple hinges, the HXCD helps maintain precise alignment and improves the reliability of safety monitoring systems in industrial machinery.
Typical Applications
- Industrial machine guard doors.
- Food and beverage processing equipment.
- Pharmaceutical and hygienic environments.
- Heavy-duty access panels and enclosures.
- Automation systems requiring multiple hinges.
- Installations using HX series safety hinge switches.
Frequently Asked Questions
What is the Pizzato HXCD used for?
It is an additional hinge used to support guard doors in systems using HX series safety hinge switches.
Does the HXCD include any electrical contacts?
No, the HXCD is a purely mechanical hinge and does not include any electrical switching components.
Why is an additional hinge required?
Additional hinges help distribute the mechanical load of the door, preventing stress on the safety hinge switch and ensuring long-term reliability.
Is the HXCD suitable for hygienic environments?
Yes, it is made from AISI 316L stainless steel and is suitable for washdown and hygienic applications.
Can it be used with all HX series hinges?
Yes, it is designed as a compatible accessory for HX series safety hinge switches.
Trusted by Industrial Engineers Worldwide
Pizzato HX series accessories are widely used by machine builders to ensure safe, reliable and durable installation of safety hinge systems in demanding industrial environments.
| Alternative Product SKU | HXCD |
|---|---|
| Manufacturer Part Number | HX CD |
| Manufacturer | Pizzato |
| Barcode | 8018851277061 |
| Range | HX |
| Packed Quantity | 1 |
| HS Code | 85369095 |
