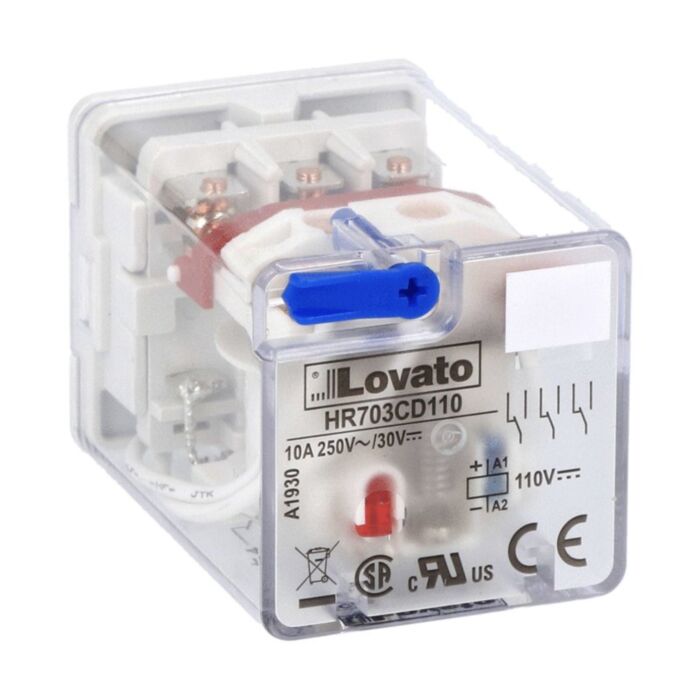

HR703CD110 - IND. RELAY 11 PINS 3C/O 10A 110VDC+LED
MPN: HR703CD110
Special Price
£9.10
£7.58
Regular Price
£15.16
Why Choose the HR703CD110?
Lovato’s HR703CD110 industrial relay delivers dependable switching for control panels and automation. With 3 changeover contacts rated to 10 A Ith and a 110VDC control voltage, it supports a wide range of signalling and power tasks. The LED state indicator and mechanical actuator simplify status checks and testing, while the 11-pin format fits the HR7XS2 socket for quick installation.
Built to IEC/EN 61810, the HR703C series offers strong insulation performance with Ui 250 V and Uimp 6 kV. A mechanical life of 5,000,000 cycles and an operating range from -40 to +55 °C ensure longevity in demanding environments. Storage down to -40 °C and up to +70 °C supports reliable logistics and spares management.
Key Benefits
- LED state indicator provides quick visual confirmation of relay status.
- Mechanical actuator enables straightforward manual operation and functional testing.
- 3 changeover contacts deliver flexible switching for diverse control tasks.
- Rated Ith 10 A supports robust loads in industrial applications.
- 110VDC control voltage suits DC control circuits and panels.
- Ui 250 V and Uimp 6 kV enhance insulation and surge immunity.
- Wide operating range -40 to +55 °C for harsh environments.
- 11-pin design fits HR7XS2 socket for simple, reliable installation.
Technical Specification
- Product type designation: HR703C
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 10 A
- Mechanical life: 5000000 cycles
- Operating temperature: -40 to +55 °C
- Storage temperature: -40 to +70 °C
What’s Included
- HR703CD110 11-pin industrial relay unit
- Pre-fitted LED state indicator and mechanical actuator
- Protective packaging for transit
- Basic installation and safety information
Applications
- Control panels and automation cabinets
- Machine control and signalling circuits
- Process control and instrumentation interfaces
- Power distribution auxiliary switching
- Maintenance and testing environments requiring manual actuation
Frequently Asked Questions
What is the relay control voltage?
The relay control voltage is 110VDC.
How many contacts does this relay have?
It has 3 changeover (3 C/O) contacts.
Does it include an LED indicator and mechanical actuator?
Yes, it features an LED state indicator and a mechanical actuator.
Which socket does the relay fit?
It fits the HR7XS2 socket.
What are the temperature limits?
Operating is -40 to +55 °C; storage is -40 to +70 °C.
Safety note: Install and service only by qualified personnel. Isolate power before wiring, observe specified voltages and temperatures, use the correct HR7XS2 socket, and follow IEC/EN 61810 and local regulations.
| Manufacturer Part Number | HR703CD110 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975234532 |
