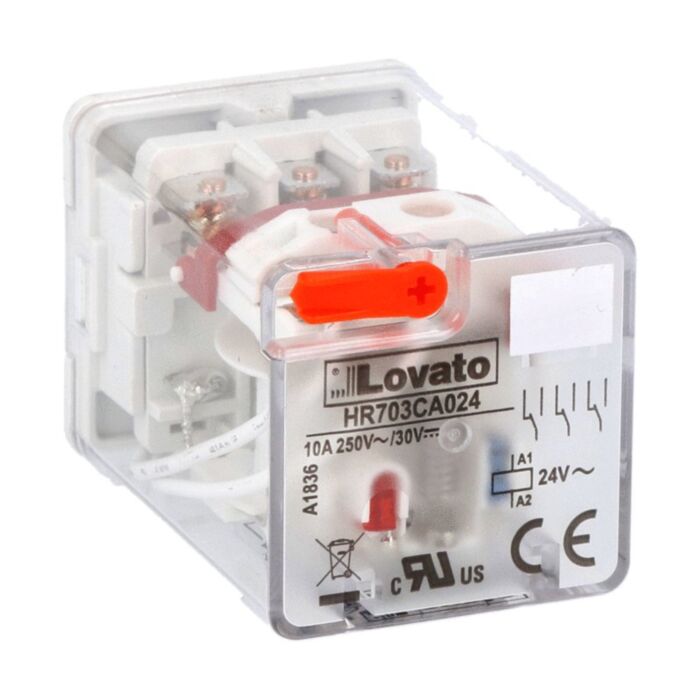

HR703CA024 - IND. RELAY 11 PINS 3C/O 10A 24VAC+LED
MPN: HR703CA024
Special Price
£8.58
£7.15
Regular Price
£14.30
Why Choose the HR703CA024?
Designed for dependable control, the Lovato HR703CA024 industrial relay combines a 24VAC coil with three changeover contacts rated 10 A. This 11-pin unit features a clear LED state indicator and a mechanical actuator for quick status checks and testing. With product type designation HR703C and fitting on socket HR7XS2, it suits panel builders upgrading or standardising relay interfaces.
Built for robust performance, it offers Ui 250 V insulation and 6 kV impulse withstand, plus a mechanical life of 5,000,000 cycles. Operating from −40 to +55 °C with storage from −40 to +70 °C, and compliant with IEC/EN 61810, this relay delivers reliable switching in demanding environments with a compact, panel-friendly 11-pin format.
Key Benefits
- 24VAC coil suits common control supply standards.
- Three C/O contacts enable versatile changeover switching up to 10 A.
- LED state indicator provides instant visual status confirmation.
- Mechanical actuator allows manual operation for testing and setup.
- Rated Ui 250 V and Uimp 6 kV for strong insulation.
- Mechanical life of 5,000,000 cycles supports long service.
- Operates from -40 to +55 °C for harsh environments.
- 11-pin format fitting on socket HR7XS2 simplifies installation.
Technical Specification
- Product type designation: HR703C
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 10 A
- Mechanical life: 5000000 cycles
- Operating temperature: -40 to +55 °C
- Storage temperature: -40 to +70 °C
What’s Included
- Lovato HR703CA024 industrial relay (11-pin)
- Manufacturer packaging
- Basic product information
Applications
- Control and automation panels requiring 24VAC coil relays
- Machine control, interlocks and signalling with 3 C/O contacts
- OEM equipment and panel standardisation using 11-pin bases
- Maintenance replacements in industrial relay sockets HR7XS2
Frequently Asked Questions
What coil voltage does the Lovato HR703CA024 require?
The relay operates with a 24VAC control voltage. Ensure your control supply matches 24VAC.
What is the contact configuration and current rating?
It has 3 changeover (C/O) contacts with Ith rated at 10 A.
Does this relay include an LED indicator and mechanical actuator?
Yes, it features an LED state indicator and a mechanical actuator for testing.
Which socket does the HR703CA024 fit?
It fits the HR7XS2 socket in an 11-pin format.
What standards and environmental ratings does it meet?
It complies with IEC/EN 61810 and operates from -40 to +55 °C.
Safety note: Install and commission only by qualified personnel; isolate power before work and observe the 24VAC coil, 10 A Ith, Ui 250 V and Uimp 6 kV ratings. Use the correct 11-pin HR7XS2 socket.
| Manufacturer Part Number | HR703CA024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975233801 |
