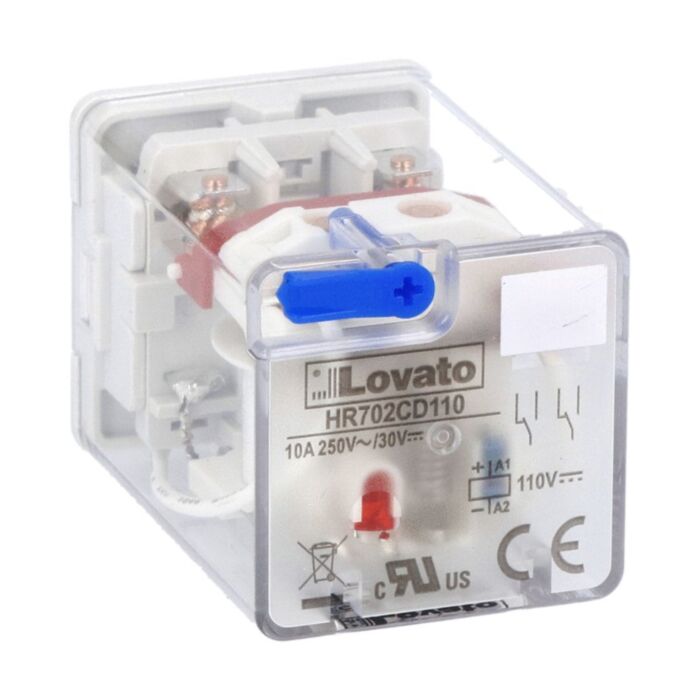

HR702CD110 - IND. RELAY 8 PINS 2C/O 10A 110VDC+LED
MPN: HR702CD110
Special Price
£8.64
£7.20
Regular Price
£14.40
Why Choose the HR702CD110?
Lovato’s HR702CD110 industrial relay delivers reliable switching for control panels and OEM builds. This 8-pin, 110VDC coil model provides 2 C/O contacts with 10 A Ith, plus an integrated LED state indicator for at-a-glance status. A mechanical actuator aids testing and maintenance, and it fits the HR7XS1 socket for quick installation and replacements.
Built on the HR702C platform, this relay combines robust insulation (Ui 250 V) and impulse withstand (Uimp 6 kV) with a wide -40 to +55 °C operating range. It offers a mechanical life of 5000000 cycles and conforms to IEC/EN 61810, making it a reliable choice for long service in industrial automation and general switching duties.
Key Benefits
- 2 C/O contacts deliver flexible switching for control and signalling circuits.
- Integrated LED state indicator enables instant visual status checks.
- Mechanical actuator supports manual testing and quick diagnostics.
- 110VDC coil suits common DC control applications.
- Rated Ith 10 A for robust current handling.
- 8-pin format fits HR7XS1 socket for fast installation.
- High insulation and surge withstand: Ui 250 V, Uimp 6 kV.
- Wide -40 to +55 °C operating range for harsh environments.
Technical Specification
- Product type designation: HR702C
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 10 A
- Mechanical life: 5000000 cycles
- Operating temperature: -40 to +55 °C
- Storage temperature: -40 to +70 °C
What’s Included
- HR702CD110 8-pin industrial relay
- Manufacturer datasheet
- Protective packaging
Applications
- Control panels and automation circuits using 110VDC coils
- Machine building and general industrial switching
- OEM equipment requiring 2 C/O relay outputs
- HVAC, pumps and lighting control via relay interfaces
- Maintenance spares for HR7XS1 socket-based installations
Frequently Asked Questions
What is the control voltage of the Lovato HR702CD110 relay?
The relay has a 110VDC control (coil) voltage.
Which socket does the HR702CD110 fit?
It fits the HR7XS1 socket.
How many contacts and what is the current rating?
It has 2 C/O contacts with Ith (IEC) of 10 A.
Does it include an LED indicator and mechanical actuator?
Yes, it features an LED state indicator and a mechanical actuator.
What standards and temperatures does it meet?
It conforms to IEC/EN 61810 and operates from -40 to +55 °C.
Safety note: Install and service only on de-energised circuits. Use the HR7XS1 socket, respect the specified voltages, currents and temperature limits, and follow manufacturer guidance and applicable electrical safety procedures.
| Manufacturer Part Number | HR702CD110 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975234525 |
