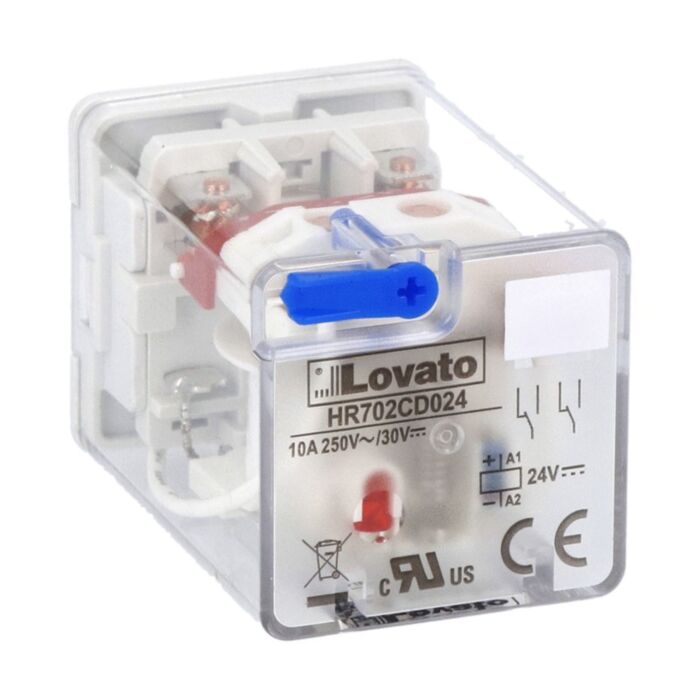

HR702CD024 - IND. RELAY 8 PINS 2C/O 10A 24VDC+LED

Why Choose the HR702CD024?

Designed for reliable control switching, the Lovato HR702CD024 industrial relay combines clarity and durability in a compact 8-pin package. With a 24VDC coil, 2 changeover contacts and an LED state indicator, it simplifies diagnostics. A manual mechanical actuator aids setup and testing. Rated 10 A Ith and fitting socket HR7XS1, SKU HR702CD024 streamlines panel integration across industrial environments.

Engineered to IEC/EN 61810, the HR702C series offers robust insulation and surge tolerance, with Ui 250 V and Uimp 6 kV. A mechanical life of 5,000,000 cycles ensures dependable service, even in demanding duty. Operating from −40 to +55 °C and storing to +70 °C, this relay supports consistent performance in control panels, automation and building services.

Key Benefits

• 8-pin form factor for neat wiring and compact panel layouts.
• LED state indicator gives instant coil status at a glance.
• Mechanical actuator enables safe manual testing and circuit override.
• 2 changeover contacts provide flexible switching for control applications.
• 10 A Ith rating handles common control loads with confidence.
• Ui 250 V and Uimp 6 kV enhance insulation robustness.
• Wide operating range −40 to +55 °C suits harsh environments.
• Long 5,000,000-cycle mechanical life reduces maintenance and downtime.

Technical Specification

• Product type designation: HR702C
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 10 A
• Mechanical life: 5000000 cycles
• Operating temperature: -40 to +55 °C
• Storage temperature: -40 to +70 °C

What’s Included

• Lovato HR702CD024 industrial relay (8-pin, 24VDC coil)
• User information (digital/datasheet available)
• Protective packaging for transit

Applications

• Control panels and switchboards
• OEM machinery and automation circuits
• HVAC and building services control
• Signal switching and interlocking
• General industrial maintenance and replacements

Safety note: Always isolate power before installation or maintenance. Use a compatible HR7XS1 socket and operate within stated ratings and temperature limits, following the manufacturer’s instructions.
