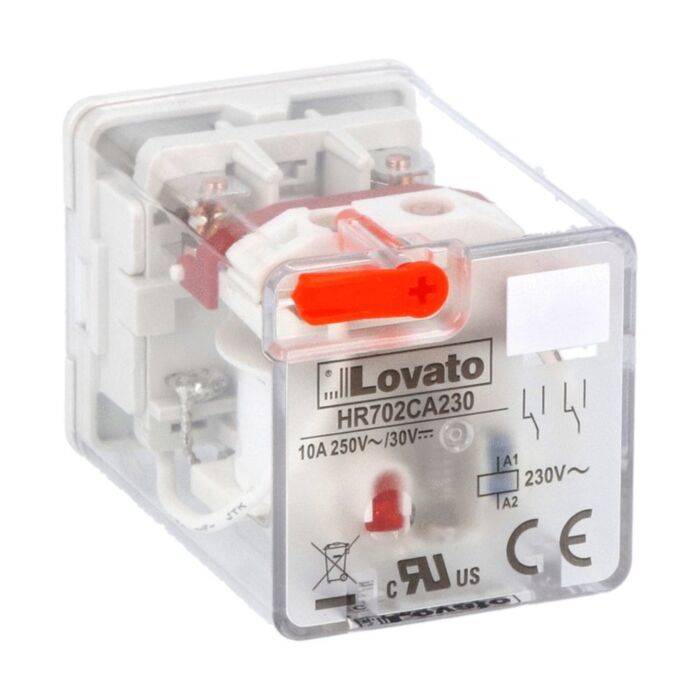

HR702CA230 - IND. RELAY 8 PINS 2C/O 10A 230VAC+LED
MPN: HR702CA230
Special Price
£9.04
£7.53
Regular Price
£15.06
Why Choose the HR702CA230?
The Lovato HR702CA230 is an 8-pin industrial relay engineered for reliable switching in control panels and machinery. With 2 changeover contacts, a 230VAC control voltage and a 10A Ith, this compact unit combines an LED state indicator with a mechanical actuator for quick status checks and manual operation. Designed to fit socket HR7XS1, the HR702CA230 streamlines installation and maintenance across a range of industrial applications.
Built to IEC/EN 61810, the HR702C series relay offers 250 V rated insulation and 6 kV impulse withstand for robust dielectric performance. A mechanical life of 5,000,000 cycles ensures longevity, while the -40 to +55 °C operating range suits harsh environments. Rated 10 A (Ith) with LED indication, it supports efficient diagnostics and carries a Sustainability certification.
Key Benefits
- 230VAC control voltage compatible with common industrial control supplies.
- 10 A Ith supports reliable switching of control-level loads.
- LED state indicator enables quick visual status confirmation.
- Mechanical actuator allows convenient manual operation and testing.
- Two changeover contacts deliver flexible wiring and signalling options.
- 8-pin format fits socket HR7XS1 for rapid, secure installation.
- Operates from -40 to +55 °C for harsh environments.
- Mechanical life of 5,000,000 cycles minimises downtime.
Technical Specification
- Product type designation: HR702C
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 10 A
- Mechanical life: 5000000 cycles
- Operating temperature: -40 to +55 °C
- Storage temperature: -40 to +70 °C
What’s Included
- Lovato HR702CA230 industrial relay
- Quick reference datasheet
- Protective packaging for transit
- Basic installation guidance
Applications
- Control panels requiring 230VAC coil and changeover switching.
- Machinery interlocking and signalling circuits up to 10 A Ith.
- Building services, HVAC and pump control status indication.
- General industrial automation and maintenance testing with manual actuation.
Frequently Asked Questions
What socket does this relay fit?
It fits socket HR7XS1 for 8-pin installation.
What is the control voltage?
The control (coil) voltage is 230VAC.
What is the contact configuration and rating?
It has 2 changeover contacts with an Ith of 10 A.
Does it include LED indication and a mechanical actuator?
Yes, it features an LED state indicator and a mechanical actuator.
What standards and environmental ratings does it meet?
It conforms to IEC/EN 61810 and operates from -40 to +55 °C.
Safety note: Ensure isolation of the power supply before installation or maintenance. Use appropriate socket HR7XS1 and follow relevant standards and wiring practices.
| Manufacturer Part Number | HR702CA230 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975233788 |
