HR702CA110 - IND. RELAY 8 PINS 2C/O 10A 110VAC+LED

Why Choose the HR702CA110?

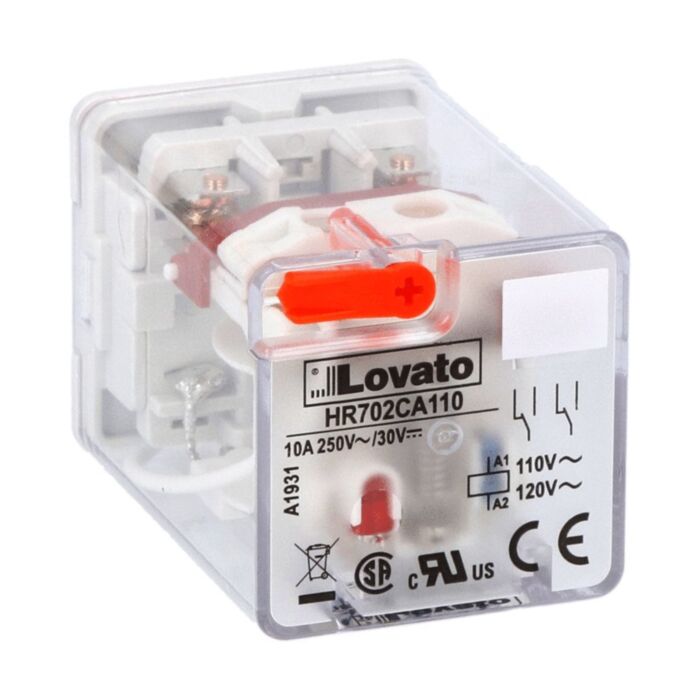

Lovato’s HR702CA110 is an 8‑pin industrial relay designed for dependable control in panels and machinery. This SKU features 2 C/O contacts rated to 10 A, a 110/120 VAC coil, and an LED state indicator for instant status checks. A built‑in mechanical actuator enables manual operation during setup or testing. The relay fits the HR7XS1 socket for quick installation and straightforward maintenance across demanding industrial environments.

Engineered to IEC/EN 61810, the HR702C series delivers robust insulation and surge endurance with Ui 250 V and Uimp 6 kV. A mechanical life of 5,000,000 cycles supports long service in control applications, and an operating temperature of -40 to +55 °C suits harsh sites. Choose this industrial relay when reliable switching, clear visual indication and manual override are essential for commissioning, diagnostics and safe intervention.

Key Benefits

• LED state indicator for quick, clear relay status verification.
• Mechanical actuator allows manual operation during setup and testing.
• 2 C/O contacts provide versatile changeover switching flexibility.
• 10 A Ith supports robust control of general industrial loads.
• Rated Ui 250 V and Uimp 6 kV enhance insulation safety.
• Wide operating temperature -40 to +55 °C for harsh environments.
• Fits HR7XS1 socket for rapid installation and replacement.

Technical Specification

• Product type designation: HR702C
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 10 A
• Mechanical life: 5000000 cycles
• Operating temperature: -40 to +55 °C
• Storage temperature: -40 to +70 °C

What’s Included

• HR702CA110 industrial relay unit
• Integrated LED indicator and mechanical actuator
• Product datasheet (downloadable)
• Compatibility info: fits socket HR7XS1

Applications

• Industrial control panels and automation systems
• Machinery interlocking and auxiliary switching
• Signal switching and control circuit isolation
• General purpose control in process equipment

Safety note: Install and service only with power isolated by qualified personnel. Observe the relay’s voltage, current and temperature ratings, and use the specified socket to maintain safety and compliance.
