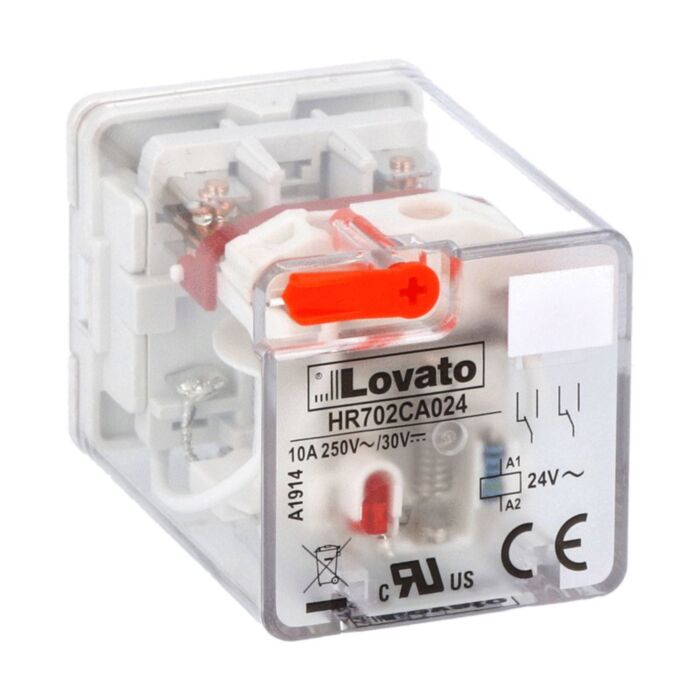

HR702CA024 - IND. RELAY 8 PINS 2C/O 10A 24VAC+LED

Why Choose the HR702CA024?

The Lovato HR702CA024 industrial relay is a robust 8-pin solution for control and automation. With a 24VAC coil, two changeover (2 C/O) contacts and a 10 A Ith rating, it provides dependable switching in panels and machinery. An integral LED state indicator and a mechanical actuator deliver instant status visibility and straightforward actuation during commissioning, testing and routine maintenance.

Engineered for reliability, the HR702C designation offers 250 V rated insulation and 6 kV impulse withstand for robust isolation. It complies with IEC/EN 61810 and operates from -40 to +55 °C, with a mechanical life of 5,000,000 cycles. The 8-pin format fits the HR7XS1 socket for quick installation and swap-out, ensuring consistent performance across industrial control panels and building services.

Key Benefits

• 8-pin format enables quick, tidy socket mounting on compatible HR7XS1 bases.
• Clear LED state indicator speeds diagnostics and reduces panel downtime.
• Mechanical actuator allows straightforward actuation and status verification.
• 24VAC coil and 2 C/O contacts suit diverse control circuit requirements.
• 10 A Ith capability supports reliable general-purpose switching duties.
• 250 V insulation and 6 kV impulse withstand enhance electrical robustness.
• Wide temperature range and 5,000,000-cycle life suit demanding environments.

Technical Specification

• Product type designation: HR702C
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 10 A
• Mechanical life: 5000000 cycles
• Operating temperature: -40 to +55 °C
• Storage temperature: -40 to +70 °C

What’s Included

• Lovato HR702CA024 industrial relay, 8-pin, 24VAC coil
• Manufacturer documentation and safety information
• Protective packaging for transit

Applications

• Control panels and automation cabinets
• Machinery interlocking and general-purpose switching
• HVAC and building services control circuits (24VAC coil)
• Signalling, status indication and interface relays
• Maintenance replacements in IEC/EN 61810 compliant systems

Safety note: Install and service by qualified personnel. Isolate power before wiring or replacement. Operate within the specified voltage, current and temperature ratings, and mount on a compatible HR7XS1 socket in line with IEC/EN 61810.
