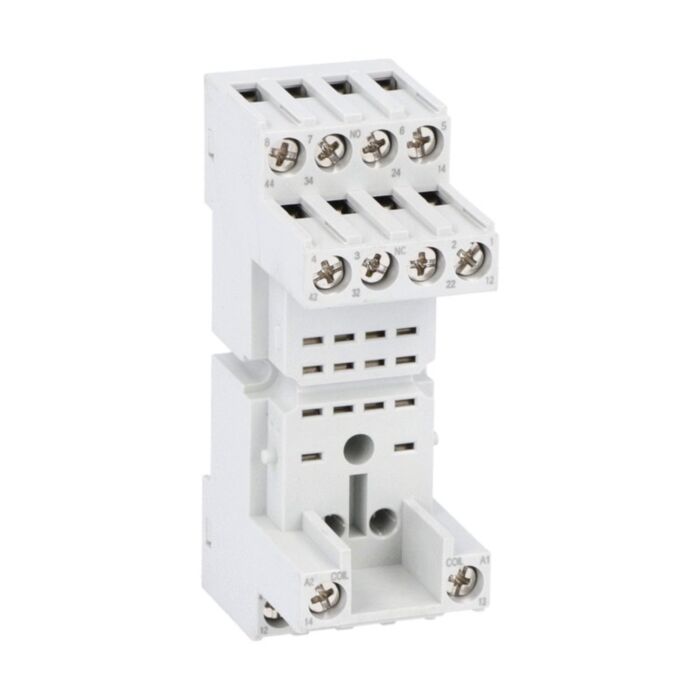

HR6XS22 - SOCKET FOR HR602C- SCREW TERMINALS

Why Choose the HR6XS22?

The Lovato HR6XS22 Socket delivers dependable, screw terminal connectivity for HR602C series installations. With a rated insulation voltage Ui of 250 V and an impulse withstand voltage Uimp of 4 kV, it supports robust electrical performance in compact assemblies. Conforming to IEC/EN 61810, the HR6XS22 is a straightforward accessory choice when you need consistent, secure terminations from a trusted manufacturer.

Built to harmonised standards, this socket integrates cleanly into control cabinets and equipment where reliable connections matter. Screw terminals enable tidy, secure wiring, while compliance with IEC/EN 61810 underpins assured performance. Combine it with HR602C series devices for a matched fit, and leverage Lovato’s sustainability certification to support specification requirements without compromising on installation simplicity.

Key Benefits

• Screw terminals provide secure, straightforward wiring and reliable terminations.
• Ui 250 V rated insulation supports safety in low-voltage control circuits.
• 4 kV impulse withstand helps resist transient overvoltage events.
• Designed as an accessory for the HR602C series for a matched fit.
• Conforms to IEC/EN 61810 for consistent performance and compliance.
• Sustainability certification supports responsible procurement and specification needs.
• Clear HR6XS22 designation simplifies selection, stocking, and reordering.

Technical Specification

• Product type designation: HR6XS22
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 4 kV

What’s Included

• Lovato HR6XS22 socket unit
• Manufacturer documentation (downloadable datasheet)
• Protective packaging for transit

Applications

• Control cabinets and panels using HR602C series devices
• Industrial equipment requiring screw terminal socket connections
• OEM builds and upgrades aligned to IEC/EN 61810 compliance
• Maintenance and replacement of existing HR602C-compatible assemblies

Safety note: Installation and wiring should be performed by competent personnel. Observe the manufacturer’s instructions and ensure the 250 V Ui and 4 kV Uimp ratings suit the application before energising.
