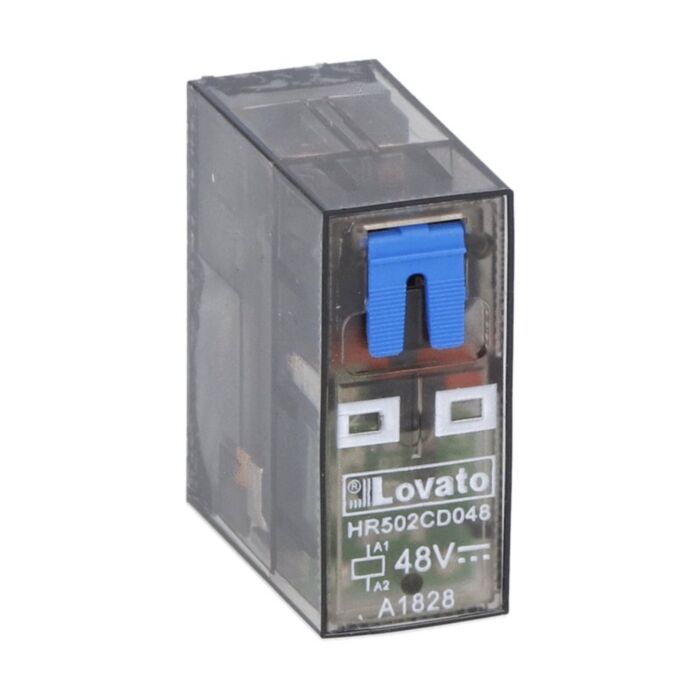

HR502CD048 - MINIATURE RELAY 2C/O 8A 48VDC + LED
MPN: HR502CD048
Special Price
£5.98
£4.98
Regular Price
£9.96
Why Choose the HR502CD048?
The Lovato HR502CD048 miniature relay provides dependable control for industrial panels and machinery. With a 48VDC coil, 2 changeover contacts and 8 A Ith, it suits a wide range of signalling and power interface tasks. An integrated LED state indicator and mechanical actuator aid commissioning, testing and fault-finding, while the unit fits the HR5XS2 socket for quick installation and maintenance.
Built to IEC/EN 61810, the HR502C series offers robust insulation to 250 V Ui and 6 kV impulse withstand. A mechanical life of 10,000,000 cycles and an operating range from -40 to +70 °C support reliable service in harsh environments. Choose this compact, versatile miniature relay to simplify diagnostics, reduce downtime and standardise across control cabinets.
Key Benefits
- Clear status with LED indicator for rapid diagnostics.
- Manual mechanical actuator enables testing without energising the coil.
- 2 C/O contacts provide flexible changeover switching options.
- 8 A Ith handles general-purpose loads in control circuits.
- 6 kV impulse withstand enhances resilience against transient surges.
- Wide -40 to +70 °C operating range suits demanding environments.
- Fits HR5XS2 socket for quick, standardised installation and replacement.
- Long mechanical life of 10,000,000 cycles reduces maintenance.
Technical Specification
- Product type designation: HR502C
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 8 A
- Mechanical life: 10000000 cycles
- Operating temperature: -40 to +70 °C
- Storage temperature: -40 to +85 °C
What’s Included
- Lovato HR502CD048 miniature relay (2 C/O, 48VDC coil)
- Manufacturer datasheet (downloadable)
- Original packaging
Applications
- Industrial control panels and machine automation
- Signal and power interface in OEM equipment
- HVAC and building management control circuits
- Process equipment, conveyors and material handling systems
- General-purpose switching in low-voltage control cabinets
Frequently Asked Questions
What coil voltage does the Lovato HR502CD048 require?
The relay has a 48VDC control coil, suitable for DC-operated control circuits.
Which socket is compatible with this miniature relay?
It fits the HR5XS2 socket for simple mounting and replacement.
What is the contact configuration and current rating?
It provides 2 changeover (2 C/O) contacts with an IEC conventional free air thermal current of 8 A.
Does it include an LED indicator and a mechanical actuator?
Yes, it features an LED state indicator for status and a mechanical actuator for manual operation checks.
What standards and environmental ratings does it meet?
The relay conforms to IEC/EN 61810, with 6 kV impulse withstand and an operating range of -40 to +70 °C.
Safety note: Install and service only by qualified personnel. De-energise circuits before wiring, observe stated voltage, current and temperature limits, and use the specified socket for safe operation.
| Manufacturer Part Number | HR502CD048 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975234501 |
