HR502CD024 - MINIATURE RELAY 2C/O 8A 24VDC + LED

Why Choose the HR502CD024?

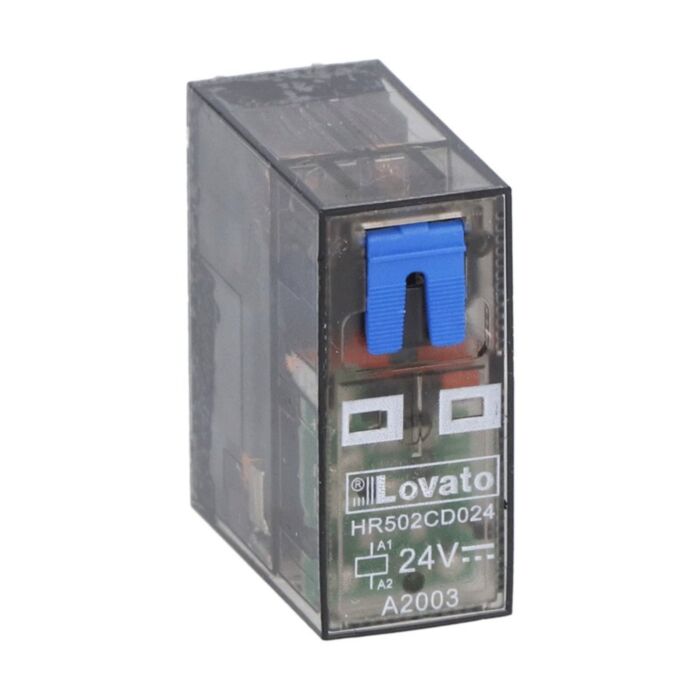

The Lovato HR502CD024 miniature relay delivers dependable switching in compact control assemblies. With 2 C/O contacts and an 8 A Ith, it suits a wide range of signalling and control tasks. A 24VDC coil, LED state indicator and mechanical actuator simplify diagnostics and manual testing. Designed for rapid panel integration, this model fits the HR5XS2 socket for neat, serviceable installation.

Engineered for longevity and resilience, this miniature relay offers a mechanical life of 10,000,000 cycles and operates reliably from -40 to +70 °C. Rated Ui 250 V with 6 kV impulse withstand, it supports robust insulation performance. Conforming to IEC/EN 61810 and designated HR502C, it provides trusted performance in industrial panels, machinery controls and automation cabinets where compact, reliable switching is essential.

Key Benefits

• 24VDC coil with clear LED state indication for swift diagnostics.
• Mechanical actuator enables convenient manual testing and override.
• 2 C/O contact arrangement offers versatile switching flexibility.
• 8 A Ith rating supports common control and signalling loads.
• 6 kV impulse withstand and Ui 250 V enhance insulation robustness.
• Wide -40 to +70 °C operating range suits demanding environments.
• Compact form fits HR5XS2 socket for fast, serviceable installation.

Technical Specification

• Product type designation: HR502C
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 8 A
• Mechanical life: 10000000 cycles
• Operating temperature: -40 to +70 °C
• Storage temperature: -40 to +85 °C

What’s Included

• Lovato HR502CD024 miniature relay
• Standard protective packaging
• Basic product information on label

Applications

• Control and signalling circuits in industrial panels
• Machine control, interlocks and automation I/O
• HVAC and building services control systems
• Process instrumentation and auxiliary switching

Safety note: Install and service only by competent personnel. Verify the 24VDC coil supply, observe the 8 A Ith rating, and isolate power before wiring or maintenance.
