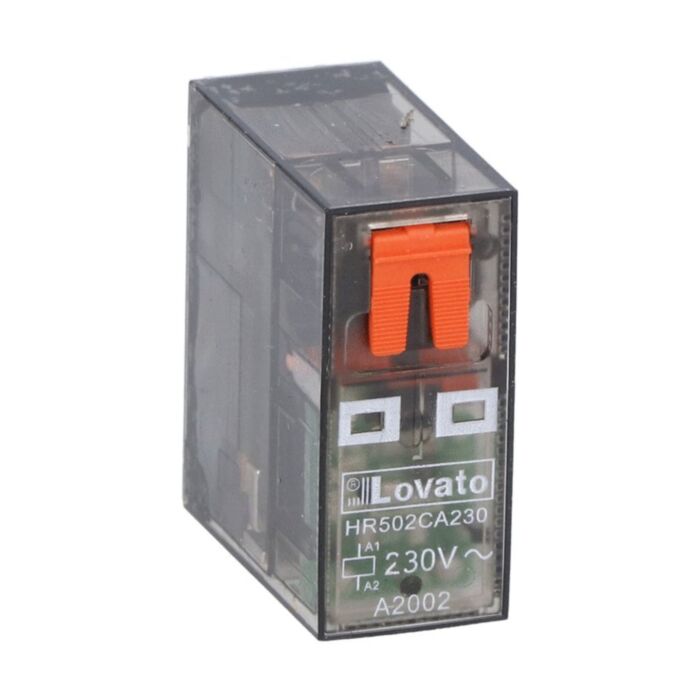

HR502CA230 - MINIATURE RELAY 2C/O 8A 230VAC + LED

Why Choose the HR502CA230?

Designed for reliable control switching, the Lovato HR502CA230 miniature relay combines a 230VAC coil, 2 C/O contacts and an 8A Ith rating in a compact form. The SKU HR502CA230 features a clear LED state indicator and a mechanical actuator for swift testing and manual override. With 250 V rated insulation and 6 kV impulse withstand, it supports dependable operation across demanding industrial and building services environments.

Built for longevity, this HR502C-designation relay delivers 10,000,000 mechanical cycles and operates from -40 to +70 °C, with storage to -40 to +85 °C. Conforming to IEC/EN 61810, it offers consistent performance and straightforward panel integration. For rapid installation, it fits the HR5XS2 socket, streamlining maintenance and replacements while keeping wiring tidy in control panels and automation cabinets.

Key Benefits

• Clear LED state indicator for quick visual status checks.
• Mechanical actuator allows manual operation during testing and maintenance.
• 230VAC coil suits standard mains control circuits.
• 2 C/O contacts provide versatile changeover switching options.
• 8A Ith rating supports a wide range of loads.
• Robust insulation 250 V Ui and 6 kV impulse withstand.
• Extended service life with 10,000,000 mechanical cycles.
• Wide -40 to +70 °C operating temperature for harsh environments.

Technical Specification

• Product type designation: HR502C
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 8 A
• Mechanical life: 10000000 cycles
• Operating temperature: -40 to +70 °C
• Storage temperature: -40 to +85 °C

What’s Included

• Lovato HR502CA230 miniature relay
• Installation and safety leaflet
• Protective packaging for transit

Applications

• Control panels and automation cabinets
• General-purpose changeover switching in machinery
• HVAC and building services control circuits
• Signal and status indication interfaces
• Maintenance replacements on HR5XS2 socketed relays

Safety note: Install and maintain only by qualified personnel. Isolate power before work and observe IEC/EN 61810 and the stated voltage, current and temperature limits for safe operation.
