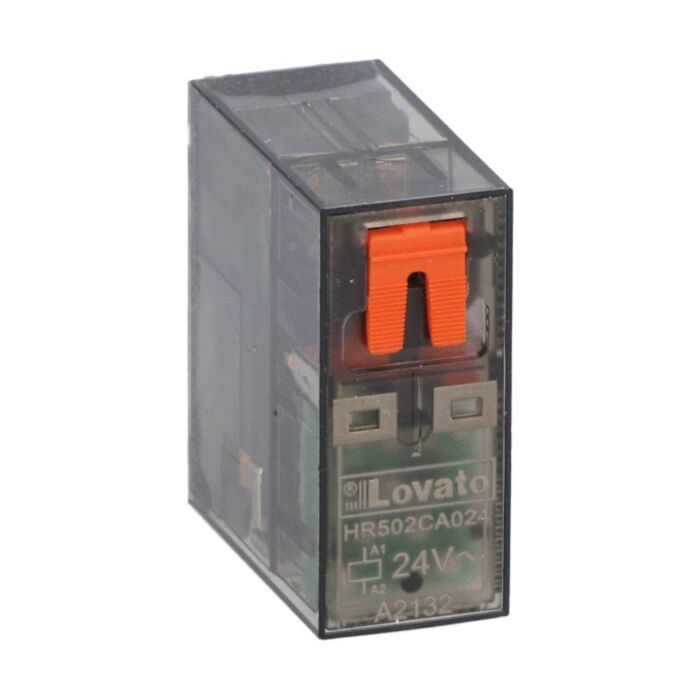

HR502CA024 - MINIATURE RELAY 2C/O 8A 24VAC + LED

Why Choose the HR502CA024?

Lovato's HR502CA024 miniature relay delivers dependable switching in compact panels. This 24VAC coil, 2 C/O contact device handles an IEC Ith of 8A and includes an LED state indicator for instant status visibility plus a mechanical actuator for manual operation and testing. The HR502CA024 fits the HR5XS2 socket for fast installation, making it a robust choice for control circuits where reliability, clear indication, and quick replacement are essential.

Built for endurance and safety, this miniature relay is designated HR502C with a rated insulation voltage of 250 V and 6 kV impulse withstand. It offers a mechanical life of 10,000,000 cycles and dependable operation from -40 to +70 °C. Conforming to IEC/EN 61810 and aligning with sustainability certification, it suits OEM panels and maintenance teams needing compact, reliable 24VAC control switching.

Key Benefits

• Clear status with integrated LED state indicator.
• Manual override via mechanical actuator for quick testing.
• 24VAC coil with 2 C/O contacts for versatile control.
• 8 A IEC Ith rating supports common control loads.
• High insulation: 250 V Ui, 6 kV impulse withstand.
• Long mechanical life rated to 10,000,000 cycles.
• Wide operating temperature -40 to +70 °C.

Technical Specification

• Product type designation: HR502C
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 8 A
• Mechanical life: 10000000 cycles
• Operating temperature: -40 to +70 °C
• Storage temperature: -40 to +85 °C

What’s Included

• Lovato HR502CA024 miniature relay unit
• Product datasheet and technical documentation (downloadable)
• Protective packaging for transit

Applications

• Control panels requiring 24VAC coil relays
• OEM machinery and equipment control circuits
• Signal switching and interlocking in automation systems
• Maintenance replacements in compact relay banks

Safety note: Install and service only when de-energised by qualified personnel. Ensure the relay’s voltage, current, and insulation ratings match the application and comply with IEC/EN 61810 and site procedures.
